50tons Waste Tire Pyrolysis Plant for Steel Wire Production

Product Description

Company Profile Qingdao Longyuan Baihong Machinery Equipment Co., Ltd. mainly produces fully automatic waste tire pyrolysis plant, waste tire recycling and shredding production line, waste tire shredding and pyrolysising production lines, waste rubber pyrolysis equipment, waste plastic pyrolysis machine, and oil sludge pyrolysis machine

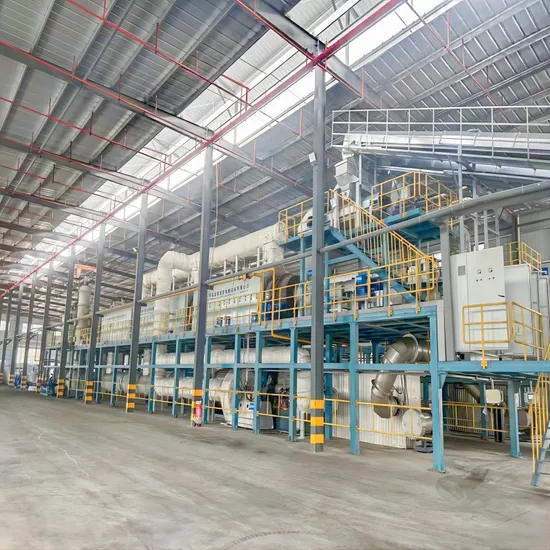

Product Description 50tons waste tire pyrolysis plant
The crushed tire blocks are transported to a continuous pyrolysis plant through belt conveyors, belt scales, screw conveyors, etc
Rapid pyrolysis reaction in the reactor, carbon black, pyrolysis steel wire, and combustible gas. The combustible gas enters the hot air furnace for combustion after passing through the oil gas separation and recovery device, providing reaction heat for the entire production system.
High temperature oil and gas are cooled into a liquid state through a spray condensation system, and then pass through an oil and gas separation and recovery device before finally entering the oil tank for storage
Pyrolysis steel wire are first recovered through cooling devices such as screw conveyors, and the recovered carbon black and steel wire are stored in storage tanks. Then, carbon black and pyrolysis steel wire can be separated through magnetic separation devices for steel wire recovery.

No	Specification	Fully continuous waste tyre/plastic/rubber prolysis plant
1	Model	BH-FC30	BH-FC40	BH-FC50	BH-FC60
2	Working type	Fully continuous	Fully continuous	Fully continuous	Fully continuous
3	Raw Material	Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
4	24 hour handling capacity	30T	40T	50T	60T
5	24 hour oil production	14T	18T	22T	27T
6	Heating way	Directly heating	Directly heating	Directly heating	Directly heating
7	Working pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure
8	Cooling way	Water cooling	Water cooling	Water cooling	Water cooling
9	Water consumption	10T/H	12T/H	16T/H	20T/H
10	Noise	≤85DB(A)	≤85DB(A)	≤85DB(A)	≤85DB(A)
11	Total weight	60T	68T	75T	80T
12	Area	47*10*9M	53*10*9M	55*10*9M	58*10*9M

Detailed Photos
Picture of Reactor
Final Products
Our Advantages 1.Outstanding Features: a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape. c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc. d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke b: Smell during operation: Fully enclosed during the operation c: Water pollution: No pollution at all. d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
Workshop
Certifications
Shipping & Packing
Our customers
Our service
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc. 3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer. 4. For the damage caused by the users, our company provides the parts and accessories with cost price. 5. Our factory supplies the wearing parts with the cost price to clients.

---
