Customized Machines OEM/ODM Tube/Pipe Laser Cutter Strip Steel Laser Cutter Machine From Manufacturer Factory

Product Description

We can customize your laser cutting equipment according to your needs, you can contact us. Product Description
↑ Picture configuration: 12 meters length,3 pieces 350mm diameter lathe chuck, side hanging type laser cutting machine with automatic unloading device.
↑ Picture configuration: 6 meters length, 2 pieces 120mm diameter lathe chuck, horizontal type laser cutting machine, no unloading device.
Fiber Laser Cutting Machine for Metal
Pipe/Tube cutting
Square tube /Rectangle tube /Round tube /Irregularly shaped tube cutter
pipe and tube fiebr laser cutting machine.
Steel cutting
I-beam, H-beam, L shape angle steel, C shape steel, U shape steel.

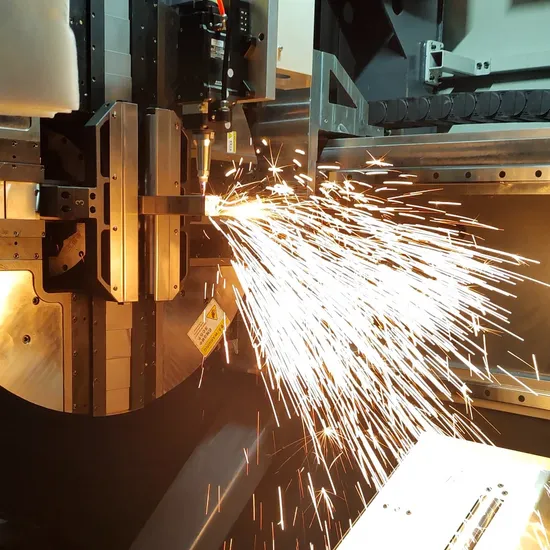

Images from 12 meters length 350mm diameter 3 lathe chuck laser cutting machine for Tube/ Pipe/ Strip steel
Large size full screen CNC control system
1.Support for 18 common languages
Chinese, English, Russian, German, French, Spanish, Arabic, Portuguese, Japanese, Korean, Turkish, Greek, Czech, Slovak, Thai, Polish, Italian, Romanian.
2.Compatible with common design software
File formats: .DXF, .EMW, .NC, .NSP, and more
3.Support numeric input
CNC control system
with Remote controller
Remote control system can control the cutting progress at any time.

Model No.	JC-6012G	JC-6017G	JC-6023G	JC-6035G	Customized
Machinable size	Diameter: <120mm Max length: 6000mm	Diameter: <170mm Max length: 6000mm	Diameter: <230mm Max length: 6000mm	Diameter: <350mm Max length: 6000mm	Diameter: Customized Max length: Customized
Laser Power	1500W/ 3000W/ 6000W
Function	Vertical cutting/ Angle cutting/ Laser slotting
Cutting Material	Iron/ Steel/ Stainless steel/ Copper//Aluminium alloy/ Titanium alloy/ Chromium alloy/ Magnesium alloy
Cutting Precision	<0.02mm
Control System	1.Desktop control system with 18 Languages 2.Enter the values/ Import the drawing, File fomat:.DXF, .EMW, .NC, .NSP, and more 3.Remote control
Warranty Period	2 years, non-human damage, non-expendable parts. Supply original consumable parts with low price.

Cut Samples Display
Company Profile
Jingchuang(Tianjin) Laser Technology Co., Ltd
We were founded in 2015, covering an area of more than 50,000 square meters, with two factories and four production workshops, mainly manufacturing: fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other matching machinery and equipment.
We support OEM/ODM, support custom production machinery according to your industry, budget, needs, etc., to provide you with the most cost-effective laser equipment, and continue to provide you with technical support, training and after-sales service, so that you can use our products more perfectly.
Certifications
As a manufacturing plant with a number of technical patents on laser cutting machines and CNC bending machines, our equipment has passed the European 2006/42/EC standard, meets the quality standards EN60204 and ISO12100, and is a demonstration enterprise. Therefore, we deserve your trust and cooperation.
Exhibition
We have participated in a variety of laser mechanical equipment related exhibitions, so that more friends can understand our equipment on the ground. You can contact us and we will share with you the latest exhibition information, so that you can check our lase machine in the field.
After Sales Service
1. Non-human damage, non-consumable parts, we provide 2-year warranty service.
2. Our laser machine will be debugging before delivery, you can test and accept on the spot before delivery.
3.. We provide user manuals for laser equipment, both text and video.
3. We provide online technical support, if there is any problem, you can deal with it by phone or video.
4. We can also provide on-site service, including commissioning and maintenance, but you need to pay some fees.
5. We also provide wearing parts in the future to avoid you from buying unsuitable parts.
