Paper Mill Disc Heat Making Machine Equipmet Paper Pulp Equipment Disperser System

Product Description

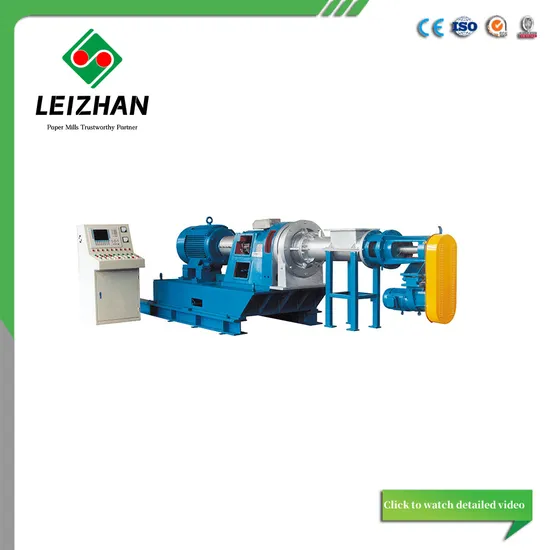

Product Description The disc heat dispersion system can effectively disperse impurities such as stickies, grease, paraffin, plastic, rubber, or ink particles in the waste paper pulp department. To improve the appearance quality of the paper and performance of the paper. The system mainly includes slurry thickening equipment (double-wire double-pressure squeezing machine or inclined screw squeezing machine and screw squeezing machine), plug screw, crushing screw, preheater, and disc heat dispersing machine. The heat dispersion system adopts PLC automatic control with high control accuracy.
Detailed Photos
Product Parameters Advantage
1. Adopt belt spiral feeding, high concentration dispersion, high dispersion efficiency, low power consumption, and little fiber damage.
2. It has a wide range of applications for waste paper raw materials and is widely used in the high-concentration heat dispersion of various waste paper deinked pulps and various cardboard waste paper pulps.
3. The grinding disc is made of hard alloy, which is wear-resistant, corrosion-resistant, anti-aging, and has a long service life.
4. With its larger refining area and unique refining tooth shape, it not only has a good thermal dispersion effect on the pulping but also has a certain splitting effect on the fibers. The physical strength of the paper is such as tearing and resistance. Indexes such as folding degree and tensile strength can be improved to varying degrees.
5. Simple structure, convenient maintenance, and low operating noise. It is an ideal equipment for beating and heat dispersion in the modern pulp and paper industry.

Model	Capacity (t/d)	Consistency (%)	Main Motor Power (KW)	Rotor speed (r/min)	Feeding screw dia (mm)	Feeding Motor Power (KW)	Feeding Pipe dia (mm)	Outlet dia (mm)
ZPS-22	10-15	15-35	22	2940	Φ130	1.1	150×140	250×80
ZPS-30	15-20	15-35	30	2950	Φ130	1.1	150×140	250×80
ZPS-37	20-30	15-35	37	2950	Φ140	1.5	200×150	300×80
ZPS-45	25-35	15-35	45	2970	Φ155	1.5	250×150	300×80
ZPS-55	30-40	15-35	55	2970	Φ155	1.5	250×150	300×80
ZPS-75	40-60	15-35	75	2970	Φ150	2.2	250×150	300×80
ZPS-90	45-70	15-35	90	2970	Φ165	2.2	250×170	300×100
ZPS-110	50-85	15-35	110	2980	Φ175	3	280×180	300×100
ZPS-132	65-100	15-35	132	2980	Φ175	3	300×180	300×150
ZPS-160	80-120	15-35	160	2980	Φ175	4	300×200	300×150
ZPS-200	100-150	15-35	200	1480	Φ200	5.5	350×200	350×200
ZPS-250	120-190	15-35	250	1480	Φ200	5.5	350×200	350×200
ZPS-315	140-210	15-35	315	1480	Φ225	7.5	400×230	400×250
