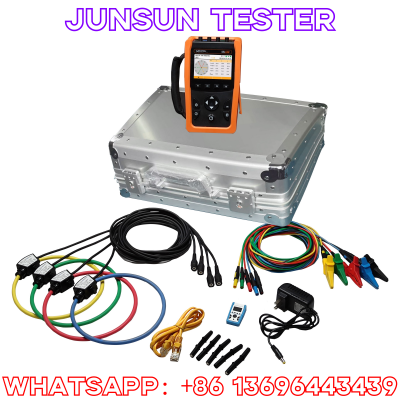

Junsun Mi550 Handheld Three Phase Power Quality Analyzer, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
1. Support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, power, energy, and power quality parameters including harmonic, unbalance degree, voltage swell and voltage dip, etc.
2. In addition to the measurement function, Mi550 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.
3. With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and could transmit the electrical parameters collected by the front end to the system data center in real time.
Product name
|
Model No.
| Mi550
|
Type
| Handheld Three phase power quality analyzer
|
Application field
|
Application field
| Power analysis, Power measurement, Power quality analysis
|
Wiring mode
|
Wiring system
| 3P4W_4CT
3P4W_3CT
3P3W_3CT
3P3W_2CT
1P2w
|
Current sensor
| Rogowski coil
Voltage-output current clamp
|
Voltage access
| Direct access
Connected through voltage transformer
|
Storage
|
Type
| TF card
|
Capacity
| 32GB
|
Data export
| U disk export (U disk file is FAT32 system)
|
Communication
|
Interface
| RJ45- Ethernet
|
Protocol
| Modbus-TCP
|
Power Supply
|
Adapter input
| 5VDC, 2A
|
Battery
| Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh
|
>>
