Flat Oval Duct Machine 50*20mm 70*20mm for Post Tension

Product Description

Flat Oval Duct Machine 50*20mm 70*20mm for Post Tension
1. Machine working flow:
Manual De-coiler machine→Feeding & Guiding Device→Roller Forming Equipment→Saw Cutting Device→Product Stand Tables
2. Production line layout (for reference):
3. Raw Material Info:
Material type: Galvanized Steel
Material thickness: 0.35mm to 0.4mm
Material Width: 185mm
Yield Strength: Q195

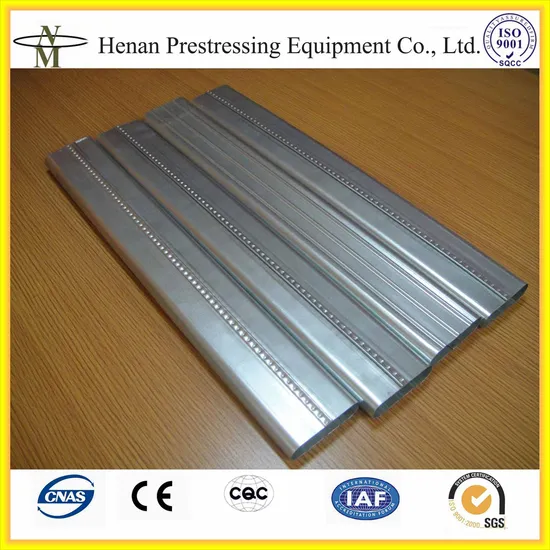

4. Forming Post-Tension Oval Flat Duct Sizes: 50mm*20mm, 70mm*20mm, 90mm*20mm, 100mm*20mm
5. Post-Tension Oval Flat Duct Machine Specifications:
Forming speed: 0~4M/Min
Product speed: 0~4M/min
Roller material: #45 steel
Forming stations: 18 stations
Shaft diameter: 40mm
Shaft material: 40Cr
Forming structure: Guiding column
Machine base frame: tube welding structure
Transmission type: gear box
Motor power of main machine: 7.5KW*1set
Motor brand of main machine: SIEMENS
Bearing: needle roll bearing, taper bearing
Bolt: 8.8 grades
Cutting type: saw cutting
Whole Line dimension: about 15m*1.25m*2.0 m (L*W*H)
Machine installation area: 25*3m (L*W)
Voltage: 380v/415v, 50 Hz, 3phase.
6. Computer control box:
PLC->Japan Mitsubishi
Frequency Inverter-> American Emerson
Encoder->Japan OMRON
Touch Screen->MGCS 10 inch big size
Emergency stop button
Aviation plug, Remote controller

7. Machine components: 3tons Manual De-coiler→1 set Feeding Guiding Device→1 set Roll forming machine→1 set Guiding Rail Saw Cutting Device→1 set Expend mouth machine→1 set Hydraulic station→1 set Expend mouth mold→1 pcs Computer control box→1 units Product stand tables→1 set
OUR ADVANTAGES
Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.
Our Product Ranges:
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter
FAQ:
1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. Inner Diameter Duct you need.
2. Voltage for machine.
3. What is your required Destination Port.
4. Order Quantity.

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 1 Set.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.

---
