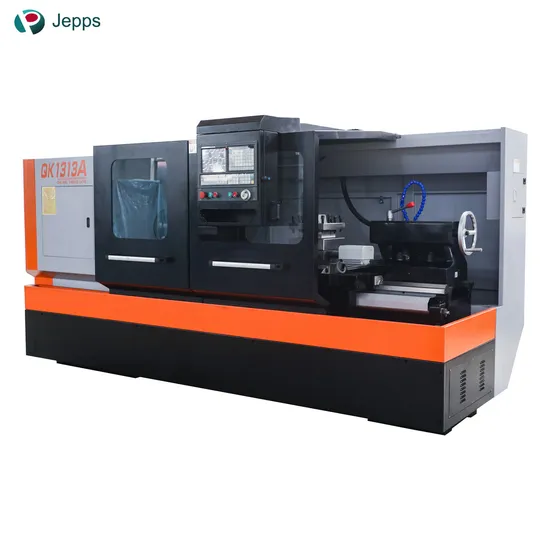

Heavy Duty Precision Automatic Metal Horizontal Steel Lathe CNC Turning Lathe

Product Description

Product Description
Guideway width 550/600mm- Suitable to process internal thread and external thread of pipes, can be also used as standard cnc lathe - Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping- Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan- Guideway stick PTFE,remove creeping,good wearability- Adopt gear spindle, stepless speed in every class
CNC Lathe Features
1.45 degree slant bed cnc lathe 2.High accuracy Taiwan linear guideways 3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back 4.Spindle unit has two types ,the heavy duty cutting type and the high speed type. 5.The first one is suitable for bearing and gear processing . 6.The second type is suitable for high speed and jhigh precision processing. 7.Customers could choose any type of them 8.Screw pre-stretching structure 9.Gang type tool post
10.Optional turret
High Precision Slant Bed CNC Lathe CNC Turning Center
Product Description

Specificationj	Unit	QK1319	QK1322	QK1313
Hole through spindle	mm	200	200	135
Max .processing Pipe diameter	mm	196	196	130
Max. swing over bed	mm	600	630	500
Max. swing over carriage	mm	340	350	340
Distance between center	mm	1500	1500	1500
Max. work piece length	mm	1350	1500/3000	1350
Guideway width	mm	460	460	460
Number of spindle speed changes	mm
Range of spindle speed changes	r/min	18-600	24-800	24-800
Quick travel speed (X/Z)	mm/min	6000	6000	6000
Max. travel	mm	390	420	390
Tool post style
sectional dimension of knife	mm	32*32	32*32	32*32
Taper of the tailstock		MT5	MT5	MT5
Diameter of the tailstock	mm	75	75	75
Travel of the tailstock	mm	230	230	230
Power of main motor	kw	11KW	11KW	11KW
X axis servomotor	kw	1.5KW	1.5KW	1.5KW
Z axis servomotor	kw	2.3KW	2.3KW	2.3KW
Cooling pump	kw	0.125KW	0.125KW	0.125KW
Processing workpiece precision		IT7	IT7	IT7
Workpiece surface roughness		Ra1.6	Ra1.6	Ra1.6
Length of bed	mm	3600	3600	3600
Width of bed	mm	1560	1560	1560
Height of bed	mm	1600	1600	1600
Weight of bed	Kg	3000	3000	3000
NC system		GSK/FANUC/SIEMENS
Weight capacity	Kg	4600	4700	4500

1. Two-speed speed change, wide speed regulation range, not only meets the requirements of high-speed thread finishing, but also has high cutting efficiency and low noise.2. The machine bed is an integral floor structure, which greatly improves the rigidity of the machine tool. The width of the guide rail surface of the bed is wide, and has been quenched and precision ground by super audio frequency.3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.4. The spindle box adopts powerful external circulation cooling and lubrication, which not only reduces the temperature rise of the spindle, but also maintains the cleanliness and lubrication of the spindle box.5. The X and Z axes are directly driven by high-precision ball screws and pre-stressed and tightened, and the nut hanger is an integral structure.6. The large-size 4-station vertical electric turret enables the machine tool to have high processing efficiency and more effectively ensure the precision of the inner hole thread of the fine turning.
Standard configuration: - GSK980TC3 CNC controller
- Double Manual chuck
- 4 station tool post
- Manual tailstock Optional configuration: - SIEMENS 808D ADVANCED/FANUC 0I TF controller
- 6/8 station tool turret

FAQ
1.Q: Which trade term I can choose?A: You can choose FOB,FCA2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.4.Q:What is your delivery time ?A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
