Chemical Drying Equipment Gr Graphene Preparation and Freeze Dryer (Contact Type)

Product Description

Product Description

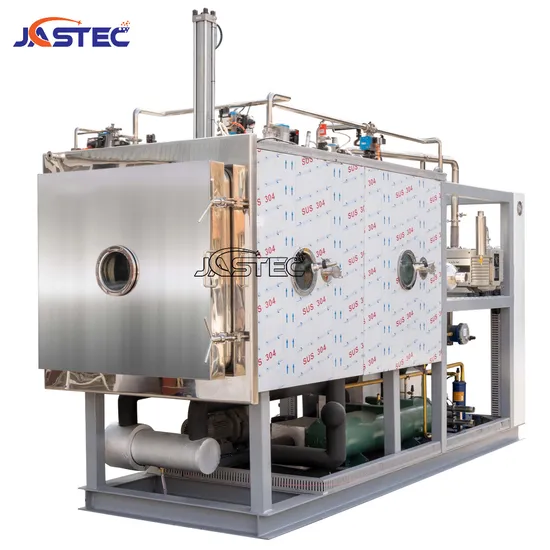

GR Graphene Preparation And Dryer
Main Technical Features of the Equipment:√ The shelves are manufactured using specialized technology, featuring high pressure resistance, excellent flatness, and uniform temperature distribution.
√High-efficiency refrigerant medium with a low freezing point and high boiling point, ensuring high heat exchange efficiency.
√ Optimized drying curve control algorithm enables precise control of the product's heating rate and vacuum level during the drying phase.
√Advanced gas flow design and control technology enhance water capture capacity and drying efficiency.
√Industrial-grade touch screen paired with the dedicated SH-HPSC-V modular controller ensures system stability, reliability, and high control accuracy.
√Incorporates years of industry application experience with a brand-new design based on aerodynamics principles, preventing material drift and meeting aerodynamic requirements.
√Equipped with systems for drying, filtering, decompression, and gas composition analysis and control, effectively preventing surface reduction when vacuum is released.
√Reliable redundancy control and comprehensive system protection functions ensure the safety of the equipment and products, while extending the service life.
√Comes standard with intelligent data management capabilities, powerful recipe design and management features, as well as accurate sensor calibration functions.
√Optional centralized control system to meet multi-level authority management needs, improve product traceability, and facilitate observation, operation, and fault diagnosis. Product Parameters

Model Performance Parameters	Unit	GR-1L	GR-5L	GR-10L	GR-15L	GR-20L	GR-30L	GR-50L
Shape Structure	-	Square	Square	Square	Square	Square	Square	Round
Effective Area	m²	1.2	5.2	10.5	15	20.2	30	52.92
Feeding Capacity	Kg	15	75	150	225	300	450	600
Number of Trays	Layers	6+1	7+1	7+1	10+1	11+1	11+1	9+1
Tray Size	mm	360×480	750×1000	990×1520	990×1520	1210×1520	1500×1800	4900×1200
Tray Spacing	mm	55	80	80	80	80	80	80
Airflow Temperature Range	ºC	-50~+90
Water Vapor Condensation	Kg/B	20	100	200	300	400	600	1000
Water Catching Temperature	ºC	≤70
Cooling Method	-	Refrigerant Cooling
Defrosting Method	-	Vacuum Electric Heating	Vacuum Spray + Soak
Ultimate Pressure	Pa	≤5	≤10
Power Consumption	Kw/h	6	20	30	50	96	120	150
Cooling Capacity	Kw	3	12	20	32	40	65	80
Cooling Water Flow	m³/h	-	8	10	30	40	40	80
Airflow Distribution Deviation	%	<2	<3	<3	<3	<5	<5	<5
External Dimensions (L×W×H)	mm	1170×830×1670	4500×1500×2500	5200×1800×3000	5200×1800×3200	6200×2300×3200	7500×2300×3200	7000×8500×3200
Total Weight	T	0.7	3.5	6	8	9.5	12	18

Packaging & Shipping
Other Series Of Products
Company Profile
customer case
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc.

---
