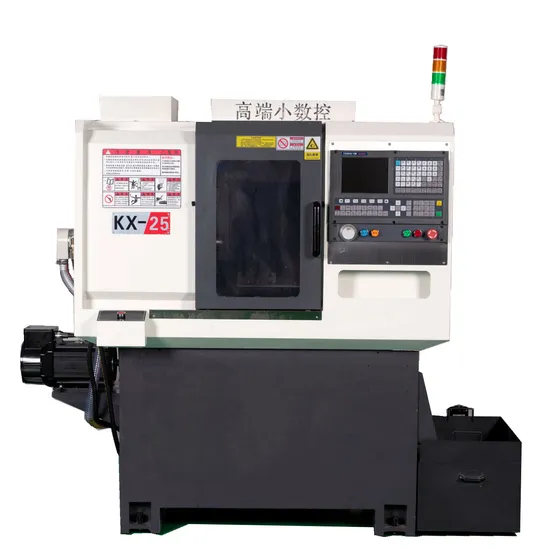

High Precision Horizontal Metal Turning Slant-Bed CNC Lathe Machine

US$7,500.00
1-2 sets
US$7,000.00
3-19 sets
US$6,300.00
20+ sets

Basic Info.

Model NO.
KX-25
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001, Eac
Condition
New
Spindle Bore(mm)
25
Repeatability (X/Y/Z) (mm)
+-0.005
Tool Post Stations
5
Voltage
380V
Max. Spindle Speed (r.p.m)
4000 r.p.m
Spindle Motor Power(Kw)
3.7
Travel (Z Axis)(mm)
180 mm
Spindle Speed
4000
Travel (X Axis)(mm)
500 mm
No. of Spindles
Single
Max. Length of Workpiece (mm)
180
Number of Axes
3
Precision
0.01mm
Positioning Accuracy (mm)
+-0.01
CNC Control System
Nanjing Kt / Syntec / GSK
Transport Package
Wooden Case
Specification
1400*1200*1650mm
Trademark
YASHU
Origin
Guangdong, China
Production Capacity
500 Set/Sets Per Month

Packaging & Delivery

Package Size
220.00cm * 170.00cm * 190.00cm
Package Gross Weight
2000.000kg

Product Description



Product Description

Machinery Specification
Specification Parameter Optional
LATHE Slant bed degree 30°
Clamping way Hydraulic clamping
Tool form Row of knives
PART Guide rail Taiwan 25 Linear guideway
Ball screw Taiwan 25 ball grinding precision
Bearing 7015/7013 XEZ
Ground to spindle center height 1080mm
Spindle motor 3.7kw DMC servo motor
Feed servo 1.2kw DMC servo motor
CNC Control System NANJINGKT 820Ti SYNTEC/GSK/LNC
Application scope of processing Normal Use Value Maximum Value
Working
ability		 Spindle bore φ25mm φ25mm
Maximum particle diameter
(disc type)		 200mm 300mm
Maximum length of workpiece to be processed 150mm 180mm
Single side cutting of
stainless steel		 2mm 2.5mm
Repositioning accuracy ±0.01mm
Smooth finish 1.6RA
Center height of tool rest 40mm
Turning diameter φ350mm
Square tool specification 16mm
Travel X axis travel 500mm
Z axis travel 180mm
Feed X-axis fast moving velocity 25m/min 30m/min
Z-axis fast moving velocity 25m/min 30m/min
X axis servo power 1.2KW
Z axis servo power 1.2KW
Spindle Spindle speed 3500r/min 4000r/min
Spindle motor power 3.7KW
Spindle nose A2-4
Support hydraulic chuck size 5 inch
Dimensional
&
weight		 Dimensions 1750*1350*1700mm
Weight 1500KG
