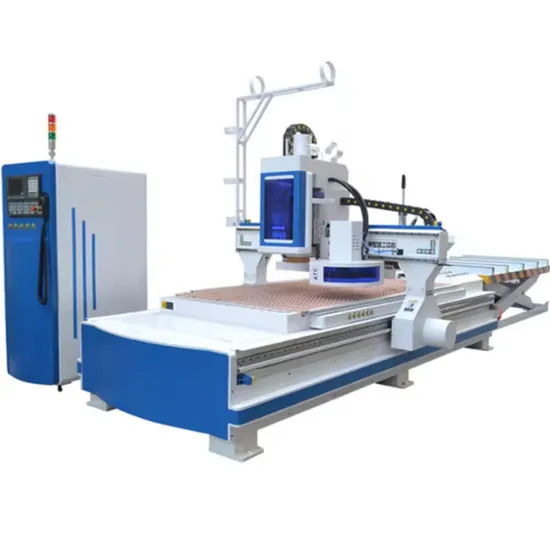

Automatic Tool Changer CNC Wood Router Table 3D Relief Carving Board Engraving Cutting Atc 9kw 1325 1530 2040 Machine

Product Description

Automatic Tool Changer CNC Wood Router Table 3D Relief Carving Board Engraving Cutting Atc 9kw 1325 1530 2040 Machine
Product Description

Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	300mm
Frame structure	Heavy duty steel welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	5.5kw air cooling
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	Taiwan 25 square guide rails + Helical rack
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	9.0kw
Tool Magazine	8 - 12
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	Servo motor with reducer
operating system	Syntec FC60 CA
Dust Collector	3kw with double bags
Lubrication system	Automatic
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two year

Features
1.Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-te-rm use of no deformation. 2.Machine adopts Taiwan SYNTEC/LNC control system, high-performance industrial control system, w-hich has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture, with fast and smooth three-dimensional processing, carving and cutting. 3.The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four-ball slider, lo-ading capacity, smooth running, keeping high accuracy. 4.The machine worktable adopts the international leader vacuum technology, surface density, deformat-ion, high adsorption capacity, which can strongly absorb different materials, convenient maintenance. au-tomatic lubrication, only need to hand gently press can achieve the whole machine maintenance. 5.The software compatibility: compatible type3/Castmate/Artcam/ Wentai/Mastercame and other design software.
Detailed Pictures
Finished Pictures Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years made in china trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.

---
