Wood Chips Oscillating Screen From Loreek Machinery

Product Details

Product Description

Product Description

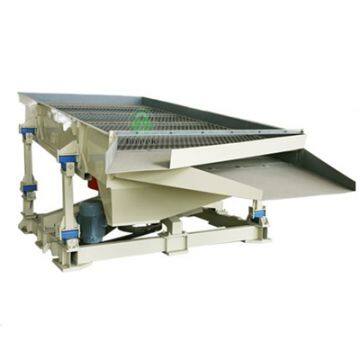

Loreek Wood Chips Oscillating Screen:
Application scope: paper making industry, wood panel industry, etc.
Usage : Removing the unqualified wood chips to achieve the uniform chip size.
Capacity : 15-700 CBM/HOUR.
Delivery detail : 20 working days.
Introduction:
Wood Chips Oscillating Screen is the special equipment for separating chips used in chip producing company, paper making company, particleboard company and fiberboard company. It matches with the wood chipper. It is used for chooses qualified chips, which are cut by chippers. The chips specification can be controlled by changing different screen with different aperture. It is applicable to small and medium board production line.
Working Principle:
The eccentric shaft was driving by the motor to rotate through the triangular belt, and the eccentric distance of the eccentric shaft is the swing range. The screen box is swing driving by the upper parts of the eccentric shaft through a self-aligning bearing. The screen moves horizontally and reciprocating via crank link mechanism, and the materials fall when vibrating, and the large and crushed materials are separated from the qualified materials. The chips can be controlled by changing screen with different aperture.
Technical Parameters:

MODEL	LBF1420A	LBF1420B	LBF1420E	LBF14100	LBF14150
VIBRATION FREQUENCY	200 rpm	200 rpm	200 rpm	200 rpm	200 rpm
VIBRATION MARGIN	40mm	32mm	28mm	20-35mm	20-35mm
SCREEN AREA(sq.m)	2.65	5.12	8	10	15
CAPACITY(m³/h)	15	56-70	100-130	150-200	300
MOTOR POWDER	4KW	5.5KW	7.5KW	11KW	18.5KW
QTY. OF LEVEL	3	3	3	3	3
WEIGHT(KG)	1800	3000	3500	3750	6250

---
