435X335mm SS304 SS316L Food Grade Stainless Steel Square Rectangular Tank Manway Manhole

Product Description

Product Description

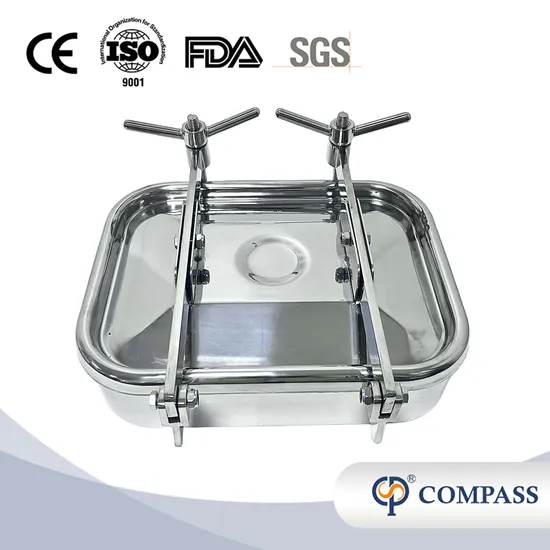

435x335MM SS304 SS316L Food Grade Stainless Steel Square Rectangular Tank Manway Manhole
Sanitary manholes are used in industrial fields such as dairy products, beer, food, beverages, and pharmaceutical processes.Generally all meet the special requirements of various media in food and biopharmaceutical fields.they are all relatively hygienic industries, completely food machinery industries, especially the equipment of large companies such as brewing and beverages.
Product Parameters

Material Contact Parts	SS304/SS316L(1.4301/1.4404)		In accordance with FDA 177.2600 Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Size	235X185MM, 150X250MM, 430X330MM, 435X335MM, 530X430MM, 535X435MM, 530X410MM, 535X415MM, 435X555MM, 700X500MM
Seal Material	Silicone, EPDM, FKM, Buna. All seals material comply with FDA21CFR117.2600
Height of Frame	80MM, 100MM, 120MM, 150MM, 200MM
Thickness of Frame	5MM, 8MM, 10MM, 12MM
Thickness of Cover	1.5MM, 2MM, 2.5MM 3MM
Pressure Rating	Atmospheric to 1Bar
External Surface Treatment	Ra32~64ui n (0.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-20~150 ºC (up to Seat Seal)
Certificate	ISO 9001, FDA, SGS, CE
Original	Made In China from Compass Machinery

Feature

1. Gasket: Silicone, EPDM, FKM, Buna, . All seals material comply with FDA21CFR117.2600 2. Material: 304(1.4301), 316L(1.4404) 3. Internal surface: 0.8um-0.4um Outside surface: Mirror polished, Matte,sand-blasting finished. 4. Height and frame and cover can be customized according to customer's requirement.

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden cases .
In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases
Contact Us
If you have any inquiry or question for our valves, please kindly do not hesitate to let us know soon.
We also produce other valves and pumps, welcome to Xusheng here, we will try our best to quote you in competitive prices.

Company Profile
XUSHENG & COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food, beer, beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve, diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump, screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type.
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.

FAQ
Q1. Are you a trading company or factory?We are a manufacturing factory.Q2. What's the payment terms?For small testing orders,we accept Paypal,Western Union,T/T and credit Card.For mass orders,we accept T/T and L/C.Q3.How do you control the quality?Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.Weonly have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.Q4.If there is any quality problem,how do you solve it?We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.Q5.How long is your delivery time?For normal production in 7-10days.For bulk order in 15-25days.Q6.WarrantyOne year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
How to Order ?
How to Order Outward Rectangular Manhole Cover ?
1. What's material quality? Such as SS304 and SS316L for optional
2. Which size you need ?
3. What's Polished for External and Internal ?
4. What's material of seal, such as silicone, EPDM or FKM or Buna ?

---
