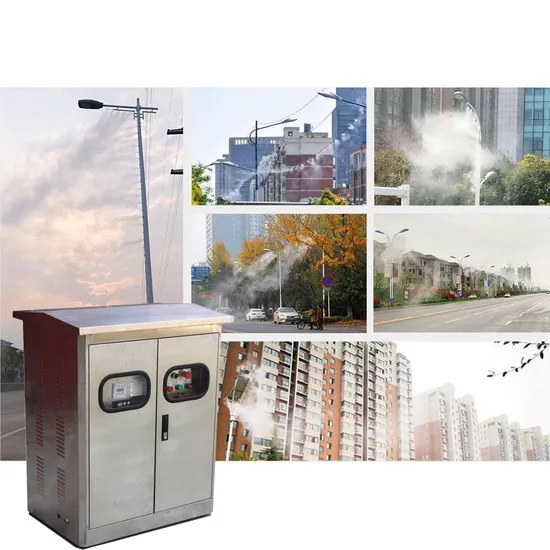

Conloon High Pressure Pump Misting Humidifier Outdoor Cooling System for Disinfection 3L/Min

Product Description

Product Detail:
1. Flow rate ranging from 0.3l/min to 17l/min, working area from 10m2 to 1000m2.
2. Working under the pressure of 20-70KG(290PSI-1015PSI), the liquid flows in a high speed forming a centrifugal vortex In the vanes, then spray the fine droplets from the orifice.
3. The accomplied nozzle can be used in artificial fog, disinfection, cooling, humidifying etc. As the wide use in artificial fog industry, it's also called artificial fog nozzle, cooling fog nozzle.
4. Machine can be customized: with or without timer, plated cover or SS cover etc.

Model	CL-HP3Z
Flowing Rate	3.0L/min
Voltage	220V/60Hz
Power input(w)	750W
Revolutions Per Minute Max (RPM)	1450
Pressure	60bar / 860psi
Usable area	180-220m2
Drop the temperature	3 to 8 ºC
N.W(kg)	70KG
G.W(kg)	90KG
Machine size(mm)	500*600*900mm
Packing size(mm)	600*700*1100mm
HOSE 1/4" METERS	60
Nozzels connection	9.52mm
Remarks (standard component)	Nozzles:20pcs Streight connection:20pcs T Connection:2pcs 90 degree Connection:2pcs
