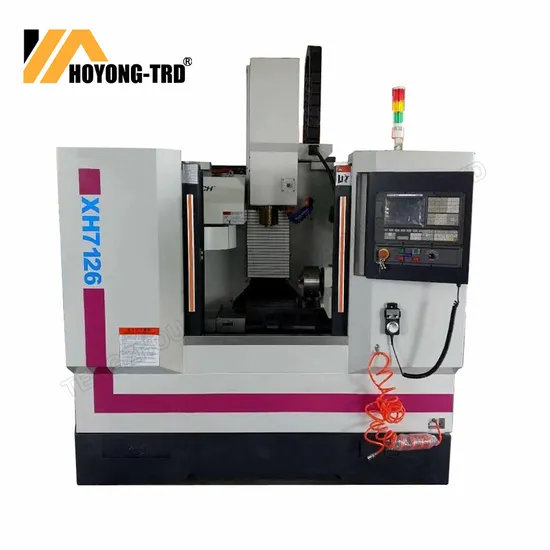

CNC Milling Machine Factory Price Xh7126 Xh7125 Xh7132 Xh7132A Xh7145A

Product Description

PRODUCT MAIN TECHNICAL SPECIFICATIONS:
KND-1000MI
X/Y/Z AXES SIEMENS SERVO MOTOR&DRIVER
SERVO SPINDLE MOTOR&DRIVER
10T FUNNEL TYPE TOOL MAGAZINE
FULL CLOSED COVER
OPTIONAL ACCESSORIES
SIEMENS 808D BASIC/828D CNC CONTROLLER
16T DISC TYPE TOOL MAGAZINE
WITHOUT TOOL MAGAZINE(CNC MILLING)
BOX GUIDEWAY OR LINEAR GUIDEWAY
4TH AXES(NC DIVIDING HEAD)

SPECIFICATION	XH7126	XK7126
The X axis stroke	450mm	500mm
Y trip	320mm	300mm
The Z axis stroke	450mm	400mm
Tool storage capacity	umbrella type magazine tool -12T	--
The spindle nose to mesa	90-470mm	90-520mm
Spindle center to post	360mm	360mm
Table size	800 X 260mm	800 X 260mm
T slot (size X number X spacing)	14 X 3 X 80mm	14 X 3 X 80mm
The workbench maximum load	400kg	400kg
The spindle taper	BT40	BT40
The standard spindle type	6000rmp	6000rmp
Spindle power	3.7kw	3.7kw
Cutting speed	1-12000mm/min	1-6000mm/min
Fast speed	X/Y/Z:15m/min	X/Y/Z:10m/min
Positioning accuracy	±0.01/300mm	±0.01/300mm
Machine tool gross weight	2400kg	1800kg

---
