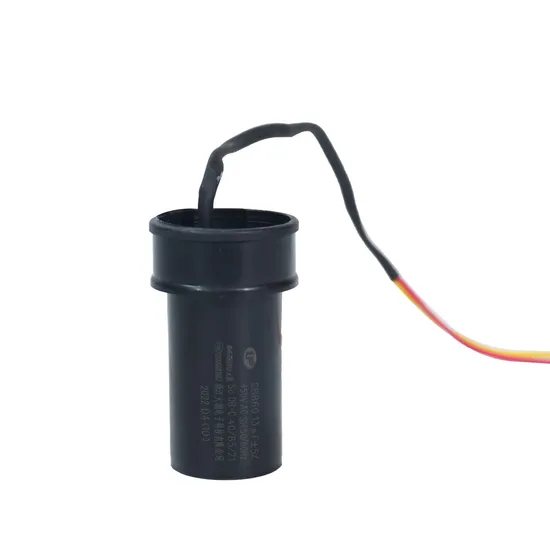

AC Motor Running Capacitor Cbb60 (Hz-007) with UL. TUV. CQC. VDE

Product Description

Product Description
Cbb60 is applicable to the startup or operation of AC motor double barrel washing machine 250/450V
Characteristics and purpose
The capacitor has the advantages of low loss factor, high insulation resistance, good self-healing, strong shock current resistance, strong overload current capacity, stable electrical performance, stable flow current, and strong bearing capacity. It is used for washing machines and separate horsepower motors, pumps and is conducive to the start and operation of motors. Detailed Photos

Rated Capacity -RC (μF)	Rated Voltage -RV (V)	Frequency (Hz)	Protection Class -IP	Dimensions (mm)
				D1±0.1	D2±0.2	H±1
4+3	450	50	S0	50	35.4	75
5+3	450	50	S0	50	35.4	75
6+3	450	50	S0	50	35.4	75
6+4	450	50	S0	50	35.4	75
7+3.5	450	50	S0	50	35.4	75
7+4	450	50	S0	50	35.4	75
8+4	450	50	S0	50	35.4	75
9+4	450	50	S0	50	35.4	75
10+3	450	50	S0	50	35.4	75
9+5	450	50	S0	50	35.4	75
10+4	450	50	S0	50	35.4	75
10+5	450	50	S0	50	35.4	75
11+4	450	50	S0	50	35.4	75
11+4.5	450	50	S0	50	35.4	75
11+5	450	50	S0	50	35.4	75
12+4	450	50	S0	50	35.4	75
12+5	450	50	S0	50	35.4	75
12+6	450	50	S0	50	35.4	75
13+4	450	50	S0	50	35.4	75
13+6	450	50	S0	50	35.4	75
13+7	450	50	S0	50	35.4	75
13+8	450	50	S0	50	35.4	75
14+4	450	50	S0	50	35.4	75
14+5	450	50	S0	50	35.4	75
14+6	450	50	S0	50	39.2	85
15+5	450	50	S0	50	39.2	85
15+6	450	50	S0	50	39.2	85
15+7	450	50	S0	50	39.2	85
Rated Capacity -RC (μF)	Rated Voltage -RV (V)	Frequency (Hz)	Protection Class -IP	Dimensions (mm)
				D1±0.1	D2±0.2	H±1
23+9	250	50	S0	50	41.4	85
30+12	250	50	S0	50	41.4	85
30+14	250	50	S0	50	41.4	85
30+12	250	50	S0	50	41.4	85
30+15	250	50	S0	50	41.4	85
30+16	250	50	S0	50	41.4	85
34+14	250	50	S0	50	41.4	85
35+14	250	50	S0	50	41.4	85
35+16.5	250	50	S0	50	41.4	85
40+14	250	50	S0	50	41.4	85
40+15	250	50	S0	50	41.4	85
38+18	250	50	S0	50	41.4	85
39+16	250	50	S0	50	41.4	85
42+15	250	50	S0	50	45	100
44+16.5	250	50	S0	50	45	100
48+16.5	250	50	S0	50	45	100
48+18	250	50	S0	50	45	100
52+17	250	50	S0	50	45	100
52+26	250	50	S0	50	45	100
Remarks: Other capacities, and sizes can be negotiated according to customer needs.

FAQ
We understands your general concerns. Check the Q&A, which will first help you save time and worries. If your question is not listed, please contact us and we will be happy to help you.
Can We capacitors be used in AC and DC circuits?
Generally speaking, our capacitors can be applied to both AC and DC circuits. However, most of our products are used for AC circuits.
Does We capacitor comply with EU CE and RoHS products?
yes. All our capacitors meet CE, VDE and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. We has OEM and ODM capabilities. You are free to choose custom service or our regular high standard capacitors.
How long does it take to quote?
In most cases, your inquiry will be answered within 24 hours. Please be assured that we will take your inquiry seriously.
May I have a sample?
of course. We will provide sufficient samples for your test free of charge. However, freight is not included.

---
