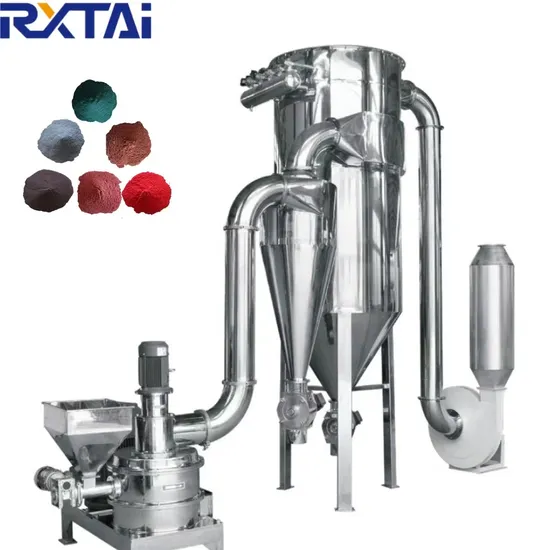

Green Technology Superfine Grinder: Efficient&Sustainable Powder Processing

Product Description

Application
•High-Precision Grinding: Capable of producing the desired particle sizes for specific environmental applications.
•Low-Temperature Operation: Suitable for heat-sensitivematerials that need to retain their properties for environmental use.Customizable Settings: Allows for adjustments to achieve different particle sizes and meet specific environmental standard
Product Parameters

No.	Item		RXT50
1	Motor Power(kW)		37/45
2	Air pipe diameter(mm)	Before cyclone	219
		After cyclone	219
		After pulse	219
3	Cyclone		X55-Φ600
4	Air locker		GFZY-5
5	Pulse dust collector		RXTMC28/42
6	Centrifugal fan		11/15kW

Model		RXT50
Capacity (t/h)	Common puffed fish (grass carp, tilapia) 80mesh>85%	≥ 0.4
	High grade puffed fish 80mesh>92%	≥ 0.4
	South American white prawn sauce 80mesh>95%	≥ 0.4
	Sea cucumber and abalone feed 300mesh>95%	≥0.2~0.3
Power(KW)		45

Company Profile
Qingdao Ruixintai Machinery Technology Co., Ltd. is located in the beautiful coastal city of Qingdao, China. The company is a comprehensive manufacturing enterprise integrating technical research and development, production, sales, and after-sales service, specializing in the production of high-performance ultrafine pulverizers and related mechanical equipment. As a specialized manufacturer in the powder technology field, Ruixintai Machinery has established a strong reputation and position in the industry through years of technical accumulation and production advantages, backed by advanced proprietary domestic technology.
Product Description
The material that has undergone initial cleaning and magnetic separation enters the crushing chamber through the spiral feeder for crushing. Due to the high-speed rotation of the grinding disk, the material is crushed by the impact of the hammer blade mounted on the grinding disk under the action of centrifugal force, and then spun at a very high speed onto the surrounding gear ring. Due to the small gap between the hammer blade and the gear ring, it is further crushed here. The crushed material is carried between the inner wall and the splitter cover by the airflow entering from under the crushing disc, and then enters the classification chamber. It is classified by the combined action of wind, gravity, and centrifugal force of the classification wheel. The separated coarse material returns to the crushing chamber from the inner cavity of the splitter cover and is re crushed. The fine material (finished product) is sucked into the classification impeller, enters the discharge chamber, and enters the air mesh system from the discharge port.
Our Clients
Other Product
FAQ1. How can I know your quality?
Our company is famuous in our industry. We have more than 10 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
