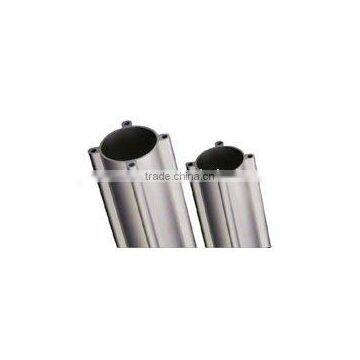

Alumium alloy round profile tubes for Pneumatic cylinder
CHROMED BARS :.
Hard chrome plated steel bars Ck45
RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HRC18-20
Induction hardened & hard chrome plated steel bars CK45RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HRC58-62
TECHNICAL PROPERTIES.
- Induction hardening depth: 1-5,4 mm.
Quenched and tempered & hard chrome plated steel bars CK45RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HB260-280
Hard chrome plated steel tubes DESCRIPTION.
Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HRC18-20
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Induction hardened & Hard chrome plated steel tubes DESCRIPTION.
Induction hardened & Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HRC58-62
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Quenched and tempered &Hard chrome plated steel tubes
DESCRIPTION.
Quenched and tempered &Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HB260-280
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Hard chrome plated stainless steel bars RANGE AND TOLERANCE.
- Diameter: 20-200mm.
- Tolerance: ISO f-7.
- Stainless grades: AISI 431, AISI 316, AISI 304.
- Surface roughness: Ra. 0.2-0.8
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
Hard chrome plated steel bars 42CrMo4 RANGE AND TOLERANCE.
- Diameter: 8-150 mm.
- Tolerance: ISO f-7.
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
Induction hardened & chrome plated steel bars 42CrMo4 RANGE AND TOLERANCE.
- Diameter: 20-120 mm.
- Tolerance: ISO f-7.
- Surface roughness: Ra. 0.2-0.8
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Induction hardening depth: 0.75-3.5 mm.
