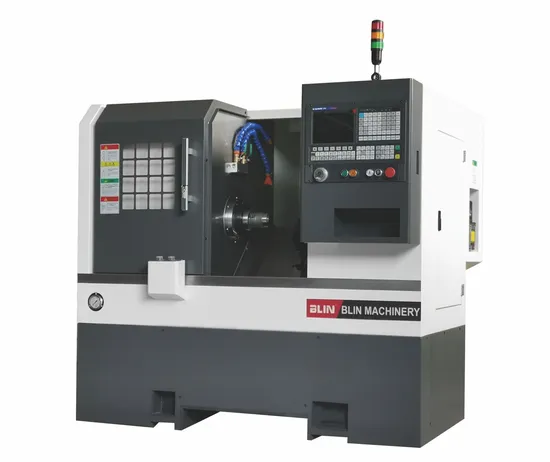

Economical Slant Bed CNC Lathe Gang Tool Without Tailstock

Product Description

-Super high performance-price ratio -Mono-block 45° slant bed Details:

Item	Specification	Unit	BL-Z5	BL-Z6
Capacity	Chuck size	/	Collet/5'' chuck*	Collet/6'' chuck*
	Max. swing dia. over bed	mm	Φ400	Φ450
	Max. machining dia.(disc type)	mm	Φ200	Φ300
	Max. machining dia.(shaft type)	mm	Φ100	Φ120
	Center distance	mm	/	/
	Max. turning length	mm	160	250
	Max. bar through dia.	mm	Φ35	Φ45
Spindle	Spindle speed	rpm	4500	4000
	Spindle bore	mm	Φ45	Φ56
	Spindle nose	/	A2-4	A2-5
	Spindle motor	kw	5.5(Servo)	5.5(Servo)
Tool turret	Tool turret type	/	Gang tool	Gang tool/ 8 station tool turret*
X/Z axes	X axes travel	mm	300	360
	Z axes travel	mm	250	310
	X/Z axes servo motor	Nm	7.5/7.5(GSK)	7.5/7.5(GSK)
	X/Z axes Linear guideway width	mm	25/25	25/30
	X,Z axes ball srew O.D./pitch	mm	Φ25/10	Φ32/10
	X/Z axes rapid moving speed	m/min	20
	X/Z axes positioning precision	mm	+/-0.006
	X/Z axes repeatable positioning precision	mm	+/-0.005
Tailstock	Tailstock quill travel	/	N/A	N/A

* As option
Main parts list:

Item	Brand
CNC controller	CHINA-GSK
Servo motor&driver	CHINA-GSK
Spindle Unit	CHINA Top
Spindle bearing	CHINA Top-HRB
Ball screw bearing	JAPAN-THT
Linear guideway	Joint venture-HTPM
Ball screw	JAPAN-LAIEN
Tool turret	TAIWAN
Chuck&oil cylinder	TAIWAN(Opt.: CHINA brand)

Standard configuration: -GSK980TC3 CNC controller -Hydraulic collet -Gang tool Optional configuration: -Chip conveyor -Bar feeder Other models choice:
