Solar Collector (TUV, BV, SRCC Approved)

Product Description

Solar collector

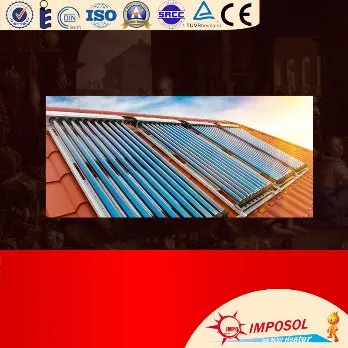

Heat pipe solar collector
1. Outer board: Aluminum-alloy, thickness 2.0mm
2. Internal bladder: Cooper pipe
3. Temperature-warmth layer: Mineral wool
4. Bracket: Stainless steel or Aluminum alloy
5. Vacuum tube: Transition heat-pipe tube(1500mm, 47mm and 1800mm, 58mm, inside 0.5mm copper tube)
6. Hail resistance: 25mm
Detailed Product Description:
1) Solar collector is designed with pressure up to 0.8Mpa.
2) Easy to use, also convenient to install
3) Can be put in the courtyard, on the roof or balcony
4) Inlet water hole connects to the tap water, and the outlet hole connects to the tap water, and the outlet hole produces pressure hot water directly
5) Efficiency: The advantage of solar tubes is that insulate the inner tube from heat loss. This means that once heat is absorbed, it is transferred to the water in the manifold, and not lost to the outside environment. This is the key difference between solar tubes and flat plate solar collectors: The insulative properties. Combined with heat transfer efficiency of the heat pipe, the collector can deliver excellent heat output all year round.
6) Aesthetics: Solar collector is designed to be low profile, sitting closed to the surface of the roof. Tubes are black and so blend in nicely with most roof colors.
7) Heat pipe has its special principle and function, and no water in the pipe. If one of the pipe is broken, the heat collector still could be used normally. Therefore, this kind of products has gradually accepted by consumers.

Model	Ligthing (m2)	Heat pipe			Supply hot water(L/D)	20/40" container
		diameter	length	No.
IPRB 47/18	1.80	Ø 47mm	1500mm	18	120	155/378
IPRB 47/20	2.10			20	135	140/340
IPRB 47/24	2.60			24	170	121/296
IPRB 47/30	3.15			30	210	93/226
IPRB58/18	2.57	Ø 58mm	1800mm	18	150	90/220
IPRB 58/20	2.88			20	175	86/212
IPRB 58/24	3.4			24	200	75/183
IPRB58/30	4.2			30	260	62/151

---
