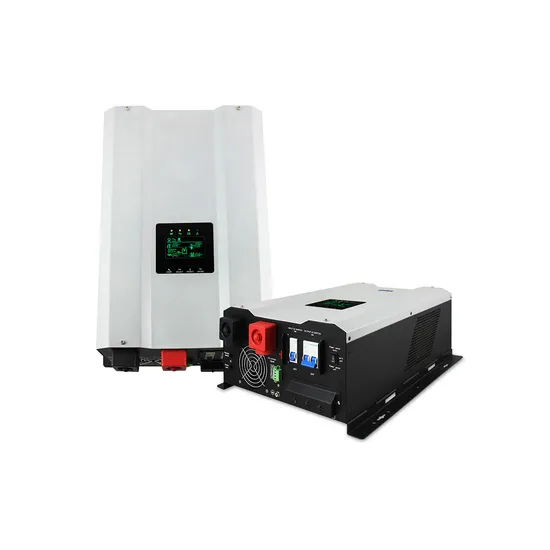

10kw AC Charger Solar Power off Grid Hybrid Pure Sine Wave Inverter

Product Description

10KW Solar Power System off Grid Hybrid Pure Sine Wave Power Inverter AC Charger Inverter
Key features:
♦ GS Series AC/Solar charging hybrid off grid inverter.
♦ LED/LCD display, Enhanced functions setting via LCD.Man-machine intelligent design.
♦ Built-in 40A/60A optional MPPT solar charger controller.
♦ Remote external display panel realize remote operation.
♦ 5 stages adjustable AC charging current. AC charging also can be closed.
♦ AC/DC priority modes can be set.
♦ Generator restart signal. (Dry contact).
♦ 3 times peak power. Strong loading capacity.
♦ Overload, output short-circuit protection.
Specification:

Model Parameters		GS1000	GS2000	GS3000	GS4000	GS5000	GS6000	GS8K	GS10K	GS12K
AC Input	Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W	8KW	10KW	12KW
	Input Voltage Waveform	sinusoidal(utility or generator)			sinusoidal(utility or generator)			sinusoidal(utility or generator)
	Nominal input Voltage	120VAC/230VAC	120VAC/230VAC	120VAC/230VAC	120VAC/230VAC	120VAC/230VAC	120VAC/230VAC	230VAC	230VAC	230VAC
	Low Line Disconnect	85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V			85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V 184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V			184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V
	Low Line Re-connect	95Vac±4%(Normal) or 85Vac±4% (Wide) for 120V 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V			95Vac±4%(Normal) or 85Vac±4% (Wide) for 120V 194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V			194Vac±4%(Normal) or 145Vac±4%(Wide) for 230V
	High Line Disconnect	136Vac±4%(Normal) or 145Vac±4%(Wide) for 120V 263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V			136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V 263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V			263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V
	Max AC input Voltage	120V for Max150V, 230V for Max270V			120V for Max150V, 230V for Max270V			230V for Max270V
	Frequency	50Hz:41-54Hz, 60Hz:51-64Hz			50Hz:41-54Hz, 60Hz:51-64Hz			50Hz:41-54Hz, 60Hz:51-64Hz
AC Output	Output Voltage Waveform	Sine wave			Sine wave			Sine wave
	Power Factor	0.9~1.0			0.9~1.0			0.9~1.0
	Nominal Output Voltage (V)	LV:120Vac ±10%rms, HV:230Vac ±10%rms			LV:120Vac ±10%rms, HV:230Vac ±10%rms			LV:120Vac ±10%rms, HV:230Vac ±10%rms
	Nominal Output Frequency (Hz)	50Hz ± 0.3Hz, 50Hz ± 0.3Hz			50Hz ± 0.3Hz, 60Hz ± 0.3Hz			50Hz ± 0.3Hz, 60Hz ± 0.3Hz
Solar charger	Rated Charge Current	40A	60A		60A/120A			60A/120A
	PV Input Voltage range	15VDC-40VDC for 12VDC, 25VDC-75VDC for 24VDC, 55-145VDC for 48V			25VDC-75VDC for 24VDC, 55-145VDC for 48V			55-145VDC for 48V
	Max.PV open circuit array voltage	12V for 40Vdc, 24V for 75Vdc, 48V for 145Vdc			24V for 75Vdc, 48V for 145Vdc			48V for 145Vdc
	Charger mode	MPPT			MPPT			MPPT
	PV Low Voltage Re-connect	PV≥Bat.V+3V			PV≥Bat.V+3V			PV≥Bat.V+3V
	PV Low Voltage Disconnect	PV<=Bat.V			PV<=Bat.V			PV<=Bat.V
	Efficiency	≥97%			≥97%			≥97%
AC Charger	Nominal Charger Current	20A/35A/50A/70A/90A( 5 stages adjustable charging current)			20A/35A/50A/70A/90A( 5 stages adjustable charging current)			20A/35A/50A/70A/90A( 5 stages adjustable charging current)
	Over charge Protection	Bat.V≥15.5VDC for 12V battery Bat.V≥31.0VDC for 24V battery Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s			Bat.V≥31.0VDC for 24V battery Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s			Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s
Efficiency	Efficiency(Battery Mode)	≥87%			≥87%			≥87%
	Efficiency (Line Mode)	>98%			>98%			>98%
Battery Voltage	Nominal DC input Voltage	12VDC/24VDC/48VDC	12VDC/24VDC/48VDC	12VDC/24VDC/48VDC	24VDC/48VDC	24VDC/48VDC	24VDC/48VDC	48VDC	48VDC	48VDC
	Low Battery Alarm	10.5VDC±0.3VDC for 12VDC 21VDC±0.6VDC for 24VDC 42VDC±1.2VDC for 48VDC			21VDC±0.6VDC for 24VDC 42VDC±1.2VDC for 48VDC			42VDC±1.2VDC for 48VDC
	Low DC input shut & down	10VDC±0.3VDC for 12VDC 20VDC±0.6VDC for 24VDC 40VDC±1.2VDC for 48VDC			20VDC±0.6VDC for 24VDC 40VDC±1.2VDC for 48VDC			40VDC±1.2VDC for 48VDC
	High DC input Alarm & Fault	16VDC±0.3VDC for 12VDC 32VDC±0.6VDC for 24VDC 64VDC±1.2VDC for 48VDC			32VDC±0.6VDC for 24VDC 64VDC±1.2VDC for 48VDC			64VDC±1.2VDC for 48VDC
Transfer Time	AC to DC	20ms(max)			20ms(max)			20ms(max)
	DC to AC	15ms(max)			15ms(max)			15ms(max)
System Parameter	Over-Load Protection	110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output,load>150%, beeps 0.5s every 1s, and Fault after 20s			110%<load<150%,beeps 0.5s every 1s,and Fault after 60s off the output,load>150%,beeps 0.5s every 1s,and Fault after 20s			110%<load<150%,beeps 0.5s every 1s,and Fault after 60s off the output,load>150%,beeps 0.5s every 1s,and Fault after 20s
	Output Short Circuit Protection	Current limit (Fault after 10s)			Current limit (Fault after 10s)			Current limit (Fault after 10s)
	Surge Rating(10s)	1:3(VA)			1:3(VA)			1:3(VA)
	Power Saver	Load≤25W(Enabled on "P/S auto"Setting of Remote control)			Load≤25W(Enabled on "P/S auto"Setting of Remote control)			Load≤25W(Enabled on "P/S auto"Setting of Remote control)
	Protections	Low battery, over charging, over load, over temp			Low battery, over charging, over load, over temp			Low battery, over charging, over load, over temp
	Indicators	LED+LCD Display			LED+LCD Display			LED+LCD Display
General Specifications	Operating Temperature Range	0ºC~40ºC			0ºC~40ºC			0ºC~40ºC
	Storage Temperature	-15ºC~60ºC			-15ºC~60ºC			-15ºC~60ºC
	Operation humidity	5% to 95%(non-condensing)			5% to 95%(non-condensing)			5% to 95%(non-condensing)
	Audible Noise	60dB max			60dB max			60dB max
	cooling	Forced air,variable speed fan			Forced air, variable speed fan			Forced air, variable speed fan
	Dimension(L*W*H)	480*336*190mm			530*400*190mm			627*416*204mm
	Net Weight(kg)	19.5kg	23.5kg	28kg	30kg	35.5kg	39kg	52.5kg	58.5kg	66.5kg

Company Profile
FAQ:
Q 1. What's the payment terms and payment method ?
A. We accept L/C, T/T, Credit Card, Western Union, Money Gram, etc.
Usually 30% deposit, 70% before shipment.
Q 2. How's the delivery time ?
A. It usually takes about 3-10 days after payment arrived.
Q 3. How about package ?
A. For the small UPS and the inverters less than 30kg will be packed in foams and cartons. For the big UPS and inverters heavier than 30kg will be packed in pallets or wood boxes .
Q 4. Would you accept to print our logo and design ?
A. Yes, we can print your logo on the inverters, UPS and cartons. Also welcomed your own design of these inverters and UPS.
Q 5. What kind of certificates you have ?
A. For company have ISO9001, ISO14001, TUV and SGS factory certification.
For UPS and power inverters, we have CE,IEC, KC and ETL, etc.
Q6. When the product have problem, how to solve it ?
A. We have a professional after-sales team, in case of any problems, first contact us to help you solve, we have a 24 months warranty and lifetime technical support. We will track product usage until you are satisfied.
