Industrial Armoured Low Voltage Copper Aluminum Power Cable

Product Description

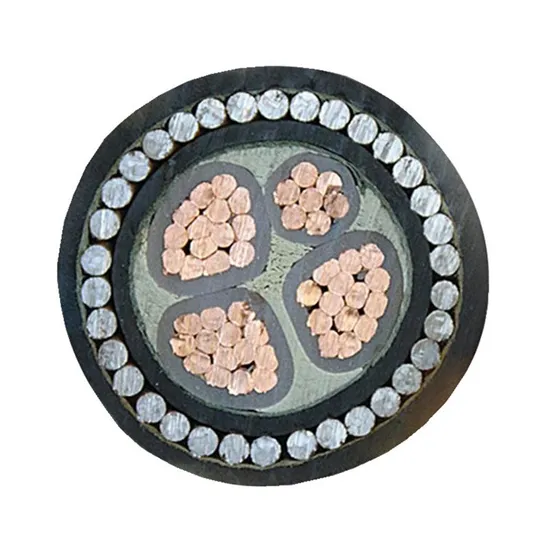

Product DescriptionStructure
1. Conductor - Plain annealed class 2 stranded (compacted) copper
2. Insulation - Cross linked polyethylene (XLPE)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)
Application
To be used for main power supply such as in low voltage distribution power networks, indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.
Temperature characteristics
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC
Conductor emergency operating temperature: 105ºC
Conductor short-circuit operating temperature (5s): 250ºC
Electrical Characteristics
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color
Insulation: According to customer requirements
Outer sheath: Black or according to customer requirements
Standard
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
Detailed Photos
Product Parameters

Nominal Area	Insulation thickness	Steel belt armored	Sheath thickness	Outer diameter	Weight
(mm2)	(mm)	(mm)	(mm)	(mm)	(kg/km)
3*1.5	0.7	0.8	1.8	13	291
3*2.5	0.7	0.8	1.8	14	343
3*4	0.7	0.8	1.8	15	414
3*6	0.7	1.25	1.8	17	621
3*10	0.7	1.25	1.8	20	826
3*16	0.7	1.25	1.8	22	1071
3*25	0.9	1.6	1.8	26	1609
3*35	0.9	1.6	1.8	28	1981
3*50	1	1.6	1.9	32	2520
3*70	1.1	2	2.1	37	3559
3*95	1.1	2	2.2	41	4570
3*120	1.2	2	2.3	45	5478
3*150	1.4	2.5	2.5	50	7003
3*185	1.6	2.5	2.7	55	8358
3*240	1.7	2.5	2.9	61	10441
3*300	1.8	2.5	3	67	12550
3*400	2	3.15	3.3	76	16490
3*500	2.2	3.15	3.6	84	20275

Packaging & Shipping
Our Advantages
Sufficient stock and timely delivery, 150000mm2 workshop, 120+ intermediate technicians, annual production capacity RMB300billion, adequate inventory of conventional products, ensure the order delivery soonestStrictly QC test management, tensile strength tester- electronic scales- hot elongation test instrument-overhead projector-slicing machine-high voltge tester, etc.Standard quality assurance: our plant has passed ISO 9001, ISO 14001, OHSAS 18001, TUV, VDE, UL, CE, SAA, BS etc. certificate. From raw material to finished products, the QC department will test physical performance, electrical performance, packing quality, etc.
FAQHow can I get some samples?We provide free sample and will courier to you by DHL, FEDEX, UPS, TNT, etc. swiftly according to your requirements.
How do you control the quality?
QC department will control the quality during the full production process.
Inspector will inspect each item according to the order, inspection report will transfer to you before loading.
Any third party inspection will be accepted during the production or before loading, such as SGS, BV, etc.
After-sale dept will follow the order and pay high attention on the feedback from your side after all the products delivered. Any quality problem, we will arrange the technical personnel to solve and bear the corresponding customer losses..
What if the cable we need have some differences on specifications from yours?
Any differences, we can design and produce according to your requests.
What's the package of the goods?
Usually wooden or steel drum or coil, or according to your requirement
What's the lead time?
Usually 10-30 working days.
Welcome your inquiry and email soon......

---
