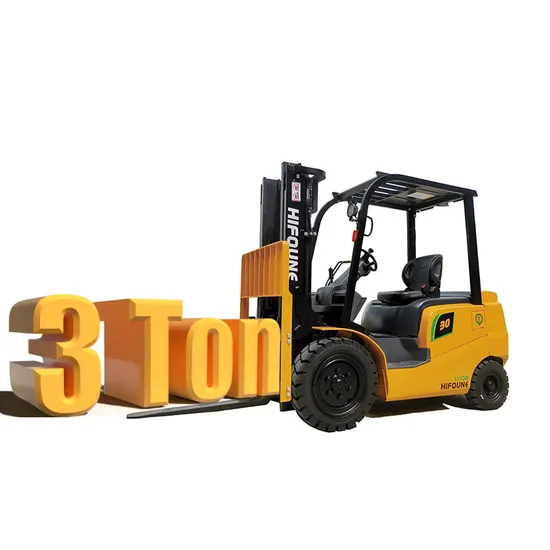

3t 80V/280ah Electric Forklift with Pneumatic Tires 2 Stages 3 Meters Mast

Product Description

Hydraulic Mini 3 Ton Electric Forklift Lead-Acid Battery with Side Shift
Forklift truck are industrial vehicles, which refer to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.
The technical parameters of the forklift are used to indicate the structural characteristics and working performance of the forklift. The main technical parameters are: rated lifting capacity, load center distance, maximum lifting height, mast angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, wheelbase, etc.
Product Parameters

LITHIUM BATTERY COUNTER BALANCED FORKLIFT(Air cooling)
Electric forklift parameters table
Content	No.	Projects	Unit
Character	1	Brand		Hifoune	Hifoune	Hifoune	Hifoune
	2	Model		FBL20	FBL25	FBL30	FBL35
	3	Power mode	-	Lithium Iron Phosphatebattery
	4	Driving mode		Seat	Seat	Seat	Seat
	5	Load capacity	Q(Kg)	2000	2500	3000	3500
	6	Load center	C(mm)	500	500	500	500
	7	Max.lifting height	h4(mm)	3000	3000	3000	3000
Weight	8	Self-weight	kg	3650	3810	4110	4410
	9	Batteryweight	kg	154	154	180	180
Size	10	Front overhang	x(mm)	470	470	475	480
	11	Wheelbase	y(mm)	1550	1550	1650	1650
	12	Mast tilting angle (fwd/bwd)	a/β(°)	6/12	6/12	6/12	6/12
	13	Mastheight(fork lowered)	mm	2080	2080	2140	2140
	14	Free lifting height	mm	140	140	145	145
	15	Max.lifting height	mm	4040	4040	4135	4135
	16	Overhead guard height	mm	2125	2125	2150	2150
	17	Driver's seat height	mm	1075	1075	1110	1110
	18	Overall length(withoutfork)	h1(mm)	2420	2450	2540	2585
	19	Overall width	b1(mm)	1160	1160	1220	1220
	20	Fork size:thickness*width*length	mm	1220X122X40	1220X122X40	1220X125X45	1220X125X50
	21	Min.ground clearance(mast)	m1(mm)	130	130	140	140
	22	Min.ground clearance(middle of chassis)	mm	140	140	150	150
	23	Min.turning radius	Wa(mm)	2250	2250	2350	2395
Tires	24	Tire type		Pneumatic tire	Pneumatic tire	Pneumatictire	Pneumatic tire/Solid tire
	25	Tire number(X=driving tire)		2×/2	2×/2	2×/2	2×/2
	26	Front tire		7.00-12-12PR	7.00-12-12PR	28X9-15-14PR	28X9-15-14PR
	27	Reartire		18X7-8-14PR	18X7-8-14PR	18X7-8-14PR	18X7-8
Performance	28	Travelling speed(loaded/unloaded)	Km/h	16/16	16/16	15/15	15/15
	29	Lifting speed(loaded/unloaded)	mm/s	300/440	300/440	320/460	310/460
	30	Max.drawbar pull(load/unloaded)	kN	22/21	21.5/20.5	20.5/19.5	19.5/18
	31	Max.gradeability(loaded/unloaded)	%	15/15	15/15	15/15	15/15
System	32	Power unit model		35G2	35G2	35G2	35G2
	33	Power unit cooling form		Air cooling	Air cooling	Aircooling	Air cooling
	34	Travelling motor power	KW	15.0AC	15.0AC	15.0AC	15.0AC
	35	Working motor power	KW	15.0AC	15.0AC	15.0AC	15.0AC
	36	Battery(voltage/capacity)	V/Ah	115.2/125	115.2/125	115.2/173	115.2/173
	37	Standard charger specifications(output)	V/A	115/50	115/50	115/100	115/100
The standard model data would vary according to the configuration.

More Details
Below are some simple details of our factory forklift, including the structure of the operating room, a simple schematic diagram of the engine and a simple display of the counterweight room. For more details, you can contact us further, and we will reply you in time and send you more complete details. More Products Please Click Here
Feature:
1.Adopt gradeability improving style electronic hydraulic transmission, compare with other models: efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10decreased.
2.Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
3.Introducing advances technology from Germany, the unique single chain has greatly enhanced he front view while working.
4.The new suspension system, adjustable seat, allowing the driver to feel more comfortable and reducing fatigue during long operations.
About Us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Certificate
Our company has a variety of patents and our factory has also applied for many certificates. In the future, we will also develop and apply for more patents and certificates in this industry.
Packaging & Shipping
Our factory strictly follows the standard export packaging. If the customer has any special packaging or other requirements, we will also pack it according to the customer's requirements.
FAQ
Q: Are you manufacturer or trader?
A: We are a professional manufacturer of Forklift.Welcome to visit our factory at any time.
Q: What's the warranty of your products?
A: All our products are provided 1 years guarantee or 2000 hours.
Q: When will make delivery ?
A: Typically standard products are delivered in 30 days.
Q:What is payment terms?
A: 1) 30% Deposit, 70% Before Shipment
2) Letter of credit payment
Q:May I know the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information.

---
