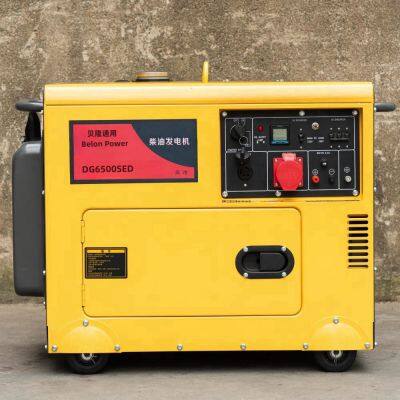

| Model | DG6500SED |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | Single phase 4.0/Three phase 4.5 Single phase 4.5/Three phase5.0 |
| Max. Power(KW) | Single phase4.5/Three phase5. 0 Single phase5.0/Three Phase 5.5 |
| Rated Output Current（A ) | Single phase 17.4/Three phase6.5 Single phase19.5/Three phase7.2 |
| DC Output | 12V 8.3A |
| Phase | Single/Three Phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 186FA |
| Start Method | Electric start |
| Engine Type | Single cylinder,4 stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 86*72 |
| Displacement | 0.418L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 5.8 6.6 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤275 ≤280 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS，Remote Control，Intelligent digital display panel |
| Size [mm] (L*W*H) | 910*525*680 |
| Packing Size [mm] (L*W*H) | 940*540*805 |
| Net Weight/Gross Weight[Kg] | 145.2/152 |
