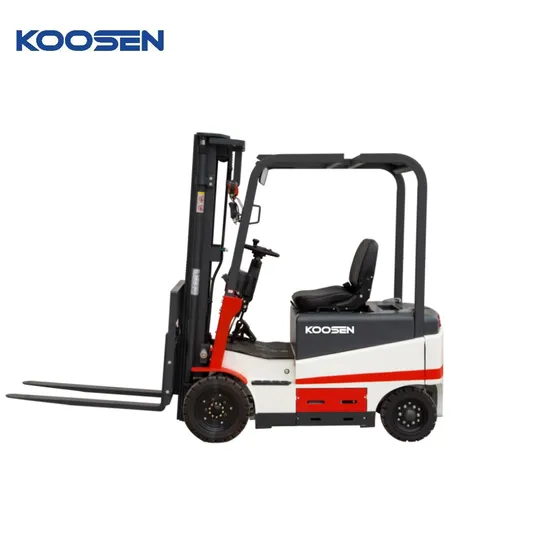

2.5t 3t Lift Height 3m Battery Powered Electric Forklift

Product Description

Product Description
Electric Forklift has an extensive range of electric forklifts for the logistics and warehousing industry, offering clean and robust power with almost maintenance-free operation. Our forklifts come in the latest construction design, with a very stable chassis, good weight-to-load handling performance and an ergonomic and spacious operator compartment with simple and easy controls.
Market.

Product Parameters

Model					CPCD15 automatic Shift	CPCD18 automatic Shift	CPC15 Manual Shift	CPC18 Manual Shift
1	Features	Powe type			Diesel	Diesel	Diesel	Diesel
2		Rated load		kg	1500	1800	1500	1800
3		Load center distance		mm	500	500	500	500
4		Lift height		mm	3000	3000	3000	3000
5		Free lift height		mm	120	120	120	120
6		Fork size	L×W×T	mm	920×100×35	920×100×35	920×100×35	920×100×35
7		Mast tilt angle	FR/RR	.	6/12	6/12	6/12	6/12
8		Minimum turning radius		mm	1955	1985	1955	1985
9		Minimum right angle stacking aisle width		mm	3365	3395	3365	3395
10		Minimum right angle aisle width		mm	2155	2185	2155	2185
11		Minimum ground clearance	Frame center(no load)	mm	115	115	115	115
12			Mast Bottom(no load)	mm	110	110	110	110
13		Height of overhead guard		mm	2060	2060	2060	2060
14		Overhang (FR)		mm	410	410	410	410
15	Performance	Maximum travel speed	Full load	km/h	15	15	15	15
			No load	km/h	15	15	15	15
16		Maximum lift speed	Full load	mm/s	470	470	470	470
			No load	mm/s	530	530	530	530
17		Maximum drawbar pull	Full load	KN	14	19	14	19
18		Maximum gradeability		%	20	20	20	20
19	Dimensions	Overall length	Without forks	mm	2235	2270	2235	2270
20		Overall width		mm	1080	1080	1080	1080
21		Mast height at maximum lift (with backrest)		mm	3930	3930	3930	3930
22		Mast lowered height		mm	2010	2010	2010	2010
23	Chassis	Tires	Front wheel		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
24			Rear wheel		5.00-8-10PR	5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
25		Wheelbase		mm	1400	1400	1400	1400
26		Tread	Front wheel/rear wheel	mm	891/920	891/920	891/920	891/920
27		Self weight	Without load	Kg	2790	2890	2790	2890
28	Drive	Battery	Voltage/capacity	V/Ah	12/80	12/80	12/80	12/80
29		Engine	Model		V25-45V42 Quanchai	V25-45V42 Quanchai	V25-45V42 Quanchai	V25-45V42 Quanchai
30			Rated output	kw/r.p.m	33.1/2600	33.1/2600	33.1/2600	33.1/2600
31			Rated torque	Nm/r.p.m	145/1800-2000	145/1800-2000	145/1800-2000	145/1800-2000
32			Bore x stroke	mm	90×100	90×100	90×100	90×100
33			Number of cylinders		4	4	4	4
34			Displacement	L	2.54	2.54	2.54	2.54
35		Fuel tank capacity		L	49	49	49	49
36		Transmissions (FWD/RWD)			1/1 manual shift	1/1 manual shift	2/2 manual shift	2/2 manual shift
37		Operating pressure		Mpa	15.5	15.5	15.5	15.5
38	Supplement	Tire type (FR/RR)			Pneumatic	Pneumatic	Pneumatic	Pneumatic
39		Number of wheels (FR/RR)			2/2	2/2	2/2	2/2
40		Lowering speed (full load)		mm/s	430	430	430	430
41		Lowering speed (no load)		mm/s	450	450	450	450
42		Axle load distribution (full load) (FR/RR)		kg	3861/429	4221/469	3861/429	4221/469
43		Axle load distribution (no load) (FR/RR)		kg	1116/1674	1156/1734	1116/1674	1156/1734

Detailed Photos

Company Profile
Exhibition
Packaging & Shipping
FAQ 1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.
