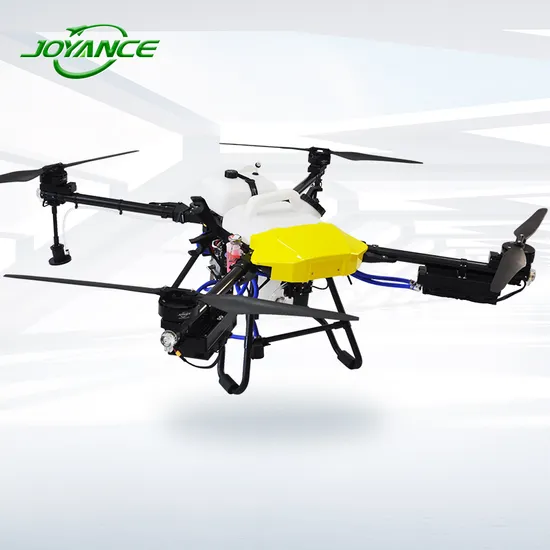

Long Fly Time 16 Liters Oil-Electric Hybrid Sprayer Drone Gasoline Power Farming Use Spraying Pesiticides Agricultural Hybrid Drone with Centrifugal Nozzles

Product Description

Company Profile

·Leading & professional sprayer drone solution provider
·10 years of R&D experiences
·200 units per month output
·shortest delivery time ≤3 working dayssufficient spare parts in stock
·Real users in more than 90 countries
·Overseas technical support
·Lifetime online after-sales service
·CE & FCC & RoHS & ISO 9001 certifications
·Top quality & Competitive price& Your reliable partner
Certifications

Our products have obtained CE, FCC ROHS, ISO9001 certifications and 18 patents and so on.
Product Description
16L water tank
5L fuel tank
2PCS centrifugal nozzle
8-10 hectares per hour
APP Autonomous Spraying

Product Name	JT16L-404HB Agricultural Sprayer Drone	Fly time	No-Load Hovering Time	70Min
Water Tank Capacity	16L		Full Load Working Time	60min (16L gasoline)
Spraying Width	4-6m(above crops 1-3 m)	Weight	Self Weight(without battery)	34KG(battery weight: 3KG)
Spraying Efficiency	8-10Ha/hr (work continuously)		Full Load Weight	63KG
Spraying Speed	7 m/s	Size	Expand Size	2.22*2.22*0.65m
Smart Battery	lithium battery: 10500mAh		Fold Size	0.8*0.8*0.75m
Product Material	carbon fiber + aviation aluminum alloy		Packing Size	123*10*90CM
Spraying System	2pcs centrifugal nozzle	Engine	Model	Two-stroke twin-cylinder EFI gasoline engine
Wind Resistance	10m/s		Engine power	7.3KW
Spraying Flow	5.5L/Min (adjustable)		Rotating speed	5000-7500r
Motor System	Hobbywing	Waterproof Level	Motor	IP68
Flight Control System	V7-AG		Whole Drone	IP57
Fuel Label	95	Others	Range Extender Output Power	6.0-6.5KW
Oil Label	FD2T		Displacement (cc)	124CC
Coolant	Ethylene glycol modulated red coolant		Fuel Consumption	4.6L/h

Detailed Photos

Independent front-end control system and power supply system, reasonable wiring, avoid electromagnetic interference, more stable and reliable, and easy to repair and replace.
Pluggable smart battery & water tank, reduce time of refilling and replacement, highly increase the working efficiency.
Fashionable appearance, novel design , and waterproof IP56. Waterproof aviation connectors to improve reliability and facilitate customer maintenance and replacement.
Customize Logo

We provide customized logo service and change cover color

Equipped with 2pcs centrifugal nozzles
the centrifugal nozzles have good atomization and penetration effects.
work at night
