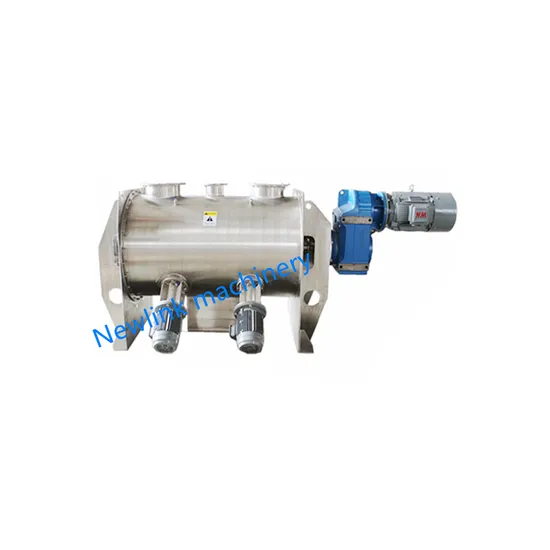

Double-Screw Belt Paint Horizontal Stainless Steel Powder Ribbon Mixer

Product Description

Automatic powder ribbon blending machine Introduction
The impeller and screw ribbon blender install with of inner and outer mixing blades and screw belts installed on the mixing shaft to drive the materials in the barrel body, so that the agitator turns the materials in the maximum range in the barrel body. In terms of the structure of agitator, the screw belt is designed to be the inside and outside, and the right and the left are opposite to each other. When the agitator is working, the inner screw belt drives the material near the shaft to do axis rotation, and the axial drive is from inside to both sides. The outer screw belt drives the material near the barrel wall to do axis rotation, and the axial drive is from both sides to the inside, which results in the convective circulation and shear infiltration of the material in the barrel. Complete material in a short time of rapid and uniform mixing.
Usage :
The Blade blender used in food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, solid pulp (powder and glue) mixing.
Working principle
The impeller screw mixer is made of inner and outer diameter screw blades mounted on the mixing shaft to drive the materials in the barrel body, so that the agitator can turn the materials in the maximum range in the barrel body. In the structure of agitator, the clearance between the blade and the barrel is small, and the screw is designed to be inside and outside and left and right opposite to each other. When the agitator works, the inner screw drives the material near the shaft to do axis rotation, and the axial drive is from inside to both sides. The outer screw drives the material near the barrel wall to do axis rotation, and the axial drive is from both sides to the inside, which results in the convective circulation and shear infiltration of the material in the barrel. Complete material in a short time of rapid and uniform mixing.
Feature:
1, the machine has a unique structure, stable operation, reliable quality, low noise, easy installation and maintenance.
2, the mixing speed is fast, the mixing uniformity is high, especially the viscosity, the screw belt can be installed scraper, the viscous material also has a good mixing effect.
3, under the mixed requirements of different materials, using different spiral belt structure, can be heated, dry jacket type.
4. The barrel cover can be made into a fully open door, and the body can also be opened with a loose cleaning door, so as to facilitate the cleaning and replacement of the equipment.
Technical parameter

Equipment Model	Effective volume (L)	Powder (kw)	Rotary speed(r/min)	Overall dimensions (mm)	Weight ( Kg)
NP-100	35-60	2.2	58	1190×740×770	380
NP-200	60-120	3	53	2030×630×980	450
NP-300	100-150	5.5	53	2320×730×1130	560
NP-600	180-300	7.5	49	2800×920×1320	680
NP-1000	350-600	11	42	3180×1020×1550	1200
NP-1500	550-800	15	42	3310×1120×1640	1600
NP-2000	700-1000	18.5	42	3750×1290×1820	2200
NP-3000	1000-1500	18.5	37	4220×1400×1990	3300
NP-4000	1500-2000	30	37	4220×1500×2100	3800
NP-5000	2000-3000	30	31	4700×1610×2260	4300
NP-6000	2200-3500	37	31	4420×2150×2470	5500
DPH-8000	3000-4200	45	27	5520×2960×2720	6800
NP-10000	3200-5000	55	27	5720×3010×2840	7900
NP-12000	3600-6000	55	23	5840×3540×2940	8800
NP-15000	5000-8000	75	23	6000×3040×3070	9500
NP-20000	8000-10000	90	19	6100×2300×3150	13500
NP-30000	10000-15000	135	17	6500×2500×3500	15000
