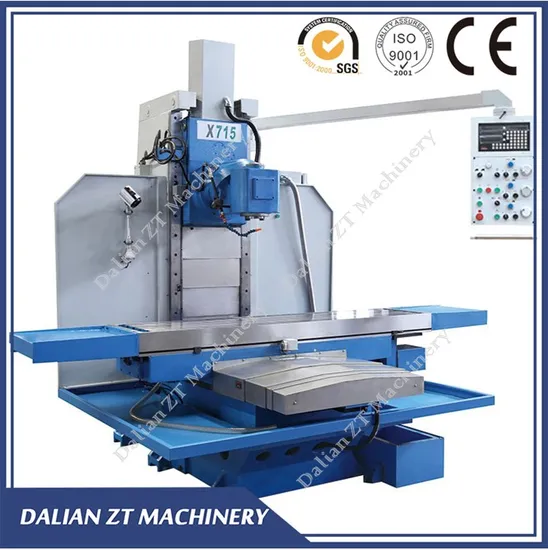

Large Worktable Universal Bed Type Milling Machine with DRO X716

US$25,000.00-32,000.00 1 set (MOQ)

Basic Info.

Model NO.
X716 X715
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Worktable size
2100X500
X-axis travel
1500mm
Y-axis travel
650mm
T-slot
4/20/100
Spindle bore taper
ISO50
Net weight of machine
7300kg
Transport Package
Wooden Cases
Specification
11 kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84595900
Production Capacity
200 Sets/Year

Product Description

Main Feature Variable spindle speeds in 2 steps Ball screws on X,Y and Z axes Servo motor on X, Y and Z-axis Technical specifications:
Specifications Unit X716
Spindle hole taper mm 7:24 ISO50
Spindle speed range r/min Variable 6-300,30-1500
Distance between spindle axis and column guideway mm 8-660
Distance between spindle nose and table surface(V) mm 0-700
Distance between spindle axis and table surface(H) mm 8-660
Table size mm 2500*600
T slots mm 5/20/100
Table travel-X mm 1800(2000)
Table travel-Y mm 700
Table feed-X/Y mm/min 2.5-3000
Table feed-Z mm/min 2.5-2500
Table rapid feed X/Y/Z mm/min 6000/6000/3000
Main motor power Kw 11
Torque of X/Y/Z axis AC servo motor Nm 18/23/18
Cooling pump motor power w 90
Overall size mm 4380*2520*2800
Weight kg 9000

NO. Item Specifications Q'ty.
1 Milling machine X716 1
2 Draw bar 1
3 IS050 Milling chuck 4,6,8,12,16, 18,12,26 1set
4 IS050 taper shell end mill holder ISO50-Φ40 1
5 7: 24 middle cover 7: 24 IS050/MS4 1
6 Oil gun 1
7 Foundation bolt M16×450 6
8 Allen wrench 5,8,10 1
9 Double-ended wrench 27×30 1
10 Double-ended wrench 36×41 1

Work Shop
Packing & Delivery:
