2023 Cpm30d Hot Sell Concrete Pump with Mixer

Product Description

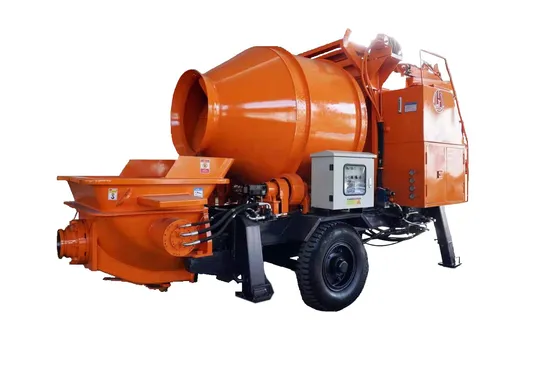

Mobile Concrete Mixing Pump The CPM30D Concrete Pump and Mixer mixing conveyer is equipped with agitation and transportation functions. The agitation system utilizes a self-fall type bi-pyramid to reverse discharging mechanism, while the hydraulic system employs a double cylinder piston type with electrical and hydraulic control. The S valve assignment form enhances efficiency and performance.
Main Parts The main engine consists of the hydraulic system, electric system, pump system, mixing mechanism, distributing valve, running gear, cowling, rack, and transfer pipeline. The hydraulic system includes the main oil route system, distributing valve oil system, and mixing oil system. The main oil route system comprises an oil filter, ram pump, electromagnetism distributing valve, electromagnetism overflow valve, check valve, main oil cylinder, and pipeline appendix. The distributing valve oil system includes an oil filter, electromagnetism distributing valve, oil cylinder, and pipeline appendix. The electric system consists of the electromotor, AC contact device, air switch, and push-button switch. Advantages This equipment offers stability, simple control, convenience, low maintenance, and easy movement.
Features It is suitable for high-rise construction, remote mortar transfer, foaming concretes, and small aggregate concretes, making construction work easier. It has high transportation efficiency and can reach areas inaccessible to other equipment. The flow of mortar in the pipeline does not cause environmental pollution. By incorporating a compressed air injection gear, it can function as a complete wet concretes jet aircraft, suitable for mine pit work, understructure support and protection lining work, wall surface spray coating, construction structure reinforcement, ground side slope stability, and tunnel excavation. It offers high work efficiency, good concretes quality, low dust loading, low snapping back rate, low failure rate, and low building cost.

Item	Unit	Specificaiton
Max. Actual Output	m3/h	15
Max.Theoretical Output	m3/h	30
Max.Outlet Pressure	Mpa	10
Distribution Valve Type		S Tube Valve
Concrete Clinder Size	mm	φ160×1000
Main Oil Cylinder	mm	φ110/1000
Oil Tank Capacity	L	200
Inner Dia.of Delivery Pipe	mm	φ125
Power		45kw
Max. Dia of Aggregates	mm	40
Towing Speed	km/h	≤8
Max.Horizontal Distance	m	200
Max.Vertical Distance	m	40
Mixer Model	RDCM350
Unmixed Capacity	L	560L
Mixed Capacity	L	350L
Drum Capacity	L	2210
Drum Thickness	mm	5
Drum Speed	rpm	15
Hopper Lifter	s	6
Loading Hopper		Mechanical Hoist Hopper
Mixing Time	s	45~60
Overall Size	mm	5300×2090×3600
Weight	kg	4000

---
