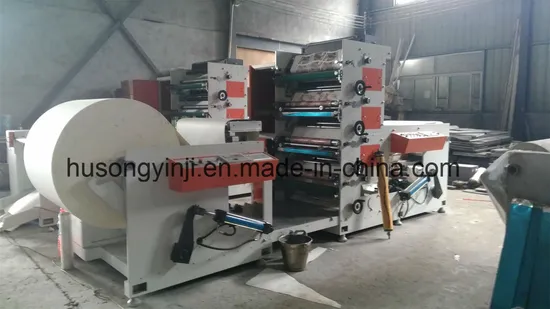

Roll to Roll Flexo Printing Machine for Paper Cup

Product Description

Roll to roll, reel to reel, Paper cup printer, for all kinds of paper cup printing, max printing width is 800mm, equip with corona.
Description
Characteristics:
Flexo Printing Machine HSR-850 Model can finish in one time from feeding paper webs, printing, automatic infrared(UV) drying. It can be equipped with ultraviolet light oven drying device. It is an ideal machine for the supermarket labels and single color self-adhesive trademarks.
1. Adopts ceramic mesh roller to convey ink.
2. Magnetic powder brake and clutch control the feeding and rolling or discharging.
3. Each printing unit adopts 360-degree registering adjuster.
4. Drying group with infrared drying device.
5. The inking roller can depart from the machine and rotate at low speed in order to keep the ink from drying when its stops.
6. The main motor adopts stepless governor converter.
Main technical parameters:
. Product Table
Model:
HSR-950
Printing speed:
50m/min
Max web width:
970mm
Max printing width:
930mm
Max feedging diameter:
1200mm
Max rolling diameter:
1200mm
Register Precion
0.1mm
Printing circumference:
180-420mm
Main Machine Power:
3.5kw
Total Power:
15kw
Overall dimension:
2500x1800x2200mm
Weight:
(about)3000kg
Thickness of paper:
60-350g

---
