5-12mm Pre-Cast Floor Wire Welded Mesh Machinery

Product Description

Product Description
Wire mesh welding machines are advanced equipment used for manufacturing wire mesh products.
These machines efficiently weld wires together to create strong and durable mesh panels.
They are widely used in various industries such as construction, agriculture, mining, and fencing.
The functionality of wire mesh machines includes precise wire alignment, automatic welding, and adjustable mesh sizes.
These machines ensure high productivity, consistent quality, and cost-effectiveness in producing wire mesh for applications like security fencing, reinforcement mesh, animal enclosures, and industrial partitions.

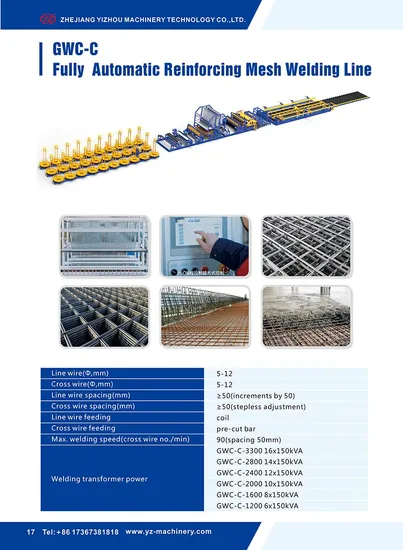

Product Parameters

Max.Welding Capacity	φ12mm+φ12mm
Welding Speed	50-90rows/min
Cross Wire Spacing	≥50mm(step-less adjustment)
Rebar Diameter	φ4-6mm/φ6-12mm
Feeding Method	Cross wire-bar; line wire-coil
Unloading/Output Method	By unloading machine
Line Wire Spacing	φ6-12mm:≥100mm(increments 50) ; φ4-6mm:≥50mm(increments 50)
Rated Power	GWC-C-3300	16x150kVA
	GWC-C-2800	14x150kVA
	GWC-C-2400	12x150kVA
	GWC-C-2000	10x150kVA
	GWC-C-1600	8x150kVA
	GWC-C-1200	6x150kVA

Detailed Photos
Line wire manual feeding(the line wire is the pre-cut straightening bar)
Cross wire automatic feeding(the cross wire is the pre-cut straightening bar)
Welding
Welded Mesh
Finished wire mesh
Welcome any inquiry!
If you have any questions or comments,please feel free to contact us.
Wire mesh welding mhines are advanced equipment used for manufacturing wire mesh products. These machines efficiently weld wires together to create strong and durable mesh panels. They are widely used in various industries such as construction, agriculture, mining, and fencing. The functionality of wire mesh machines includes precise wire alignment, automatic welding, and adjustable mesh sizes. These machines ensure high productivity, consistent quality, and cost-effectiveness in producing wire mesh for applications like security fencing, reinforcement mesh, animal enclosures, and industrial partitions. For inquiries or visits, please feel free to contact us. We welcome the opportunity to assist you

---
