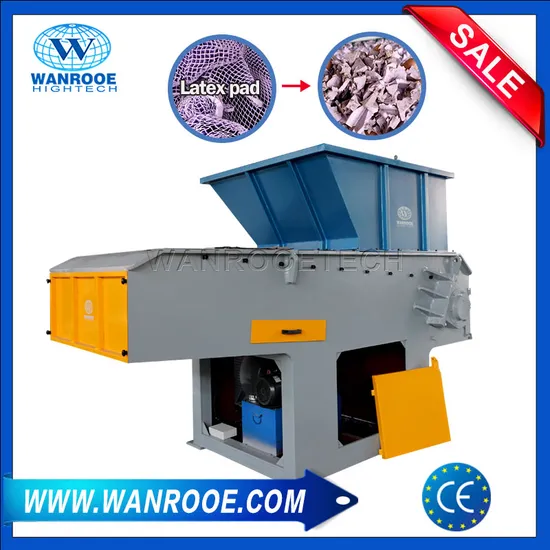

100-3000kg/H Waste Plastic Barrel/Plastic Film/Industrial Film/Bucket/Drum Shredder Plastic Crushing Machine

Product Description

100-3000kg/h Waste Plastic Barrel/Plastic Film/Industrial Film/Bucket/Drum Shredder Plastic Crushing Machine
Application Areas:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
1.Refuse-derived fuel: straw, municipal solid waste;
2.Textile: cloth fiber, nylon;
3.Paper: industrial waste paper, packing paper, cardboard paper;
4.Cable wires: copper core cable, aluminum cable, composite cables;
5.Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
6.Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;
Description:
Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. 'V' shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle in adjacent to rotary cutter to achieve better cutting. The material is grabbed between 'V'shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also the knives are very easy to install and remove.
Working principle:
The motor drives the shaft to make knife rotates in high speed, the material are put to between the knife shaft and fixed knife, the materials are shredder, the qualified size will discharge from the screen mesh, the oversize material will be send back for re shredding. The final product size can be adjusted by changing the final product size.
Technical Features:
1. The shredder single shaft for plastic with big feeding mouth, it can put the big plastic or rubber product freely.
2. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3. The shredder single shaft for plastic is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
4. The shredder single shaft for plastic runs slowly with low noise and less dusty.
5. The blade material with special alloy steel made, with long life.
6. All the machinery and electrical devices are protected in accordance with the European CE standard.
7. Hydraulic system Pushes the material automatically to the shredding rotor while working. More efficient and can achieve a high capacity. According to material kind, can adjust the pushing speed to avoid overload.
8. Cooler system(optional) can maintain the temperature for continuous operation.
Advantages:
1. The shredder single shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.
2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.
3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.
4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.
5. The knife is made from special alloy steel, sturdy and durable.
Product Details:
Technical Parameters:

Model	PNDS-600A	PNDS-800A	PNDS-1000A	PNDS-1200A	PNDS-1500A
Dimension L*W*H(mm)	2455×1478×1700	2825×1747×1875	2825×2004×1875	2825×2564×1875	2825×2964×1935
Cutting Chamber C/D(mm)	1200×600	1410×800	1410×1000	1410×1200	1410×1500
Main Power(kw)	15-22	30-45	37-55	55-90	75-132
Hydraulic Power(kw)	2.2	3	4	5.5	5.5
Shredding Diameter(mm)	320	400	400	400	480
Shredding Rotor Length(mm)	600	800	1000	1200	1500
Rotating&Fixing Blades QTY(psc)	32+2×2	38+2×2	58+2×2	95+2×3	110+2×3
End Plastic Scraps Size(mm)	30-50	30-50	30-50	30-50	30-50

Customer Feedback:
Our Service: 1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
