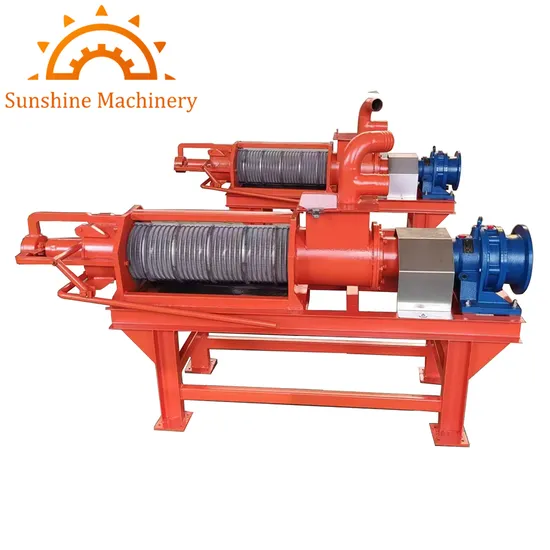

Chicken Screw Press Sludge Pig Waste Cow Dung Manure Dewatering Machine Price

Product Description

Commercial screw press pig waste cow dung manure dewatering machine price

Product Description Main components:
(1) Main unit
(2) Submerged pump
(3) Electric control box
(4) Steel wire hose 10 meters
(5) Main unit 5.5kw motor + submerged pump 3kw motor
Main parts material:
Host box cast for cast iron
Auger spindle and spiral blades are 304 stainless steel
The filter is a wedge-shaped 304 stainless steel strip filter. The gap is 0.25mm, 0.5mm, 0.75mm, and 1.0mm depending on the treated material.
Rack is made of channel steel and angle steel
Feeding method
According to customer needs can be used liquid pump feed and funnel feeding two
Technological process
Processing capacity:
CT200 treats 15-20 cubic meters of pig manure per hour and about 1.5 cubic meters of dried pig manure.
CT280 treats 20-25 cubic meters of pig manure per hour, and about 3 cubic meters of dried pig manure;
The above treatment amount will have a certain amount of error depending on the consistency of the septic tank.
Equipment packaging:
Ordinary packaging is straw + plastic film packaging, can be customized according to the needs of wooden packaging.

Details Introduction Details of Dewatering machine
Main Features for cow dung dewatering machine /pig manure chicken manure extruder dewatering, extruder dryer, extruder dehydration

1. low power computations ,low invest, high efficiency
2. compact structure
3. Brand motor, copper wire, strong force, long life use
4. easy to operate and easy to remain
5. Electric closet, Chint electronics, overload protection, automatic off
6. Chain gear driving, special design, to protect the motor system without water
7. Screw auger, 304 stainless steel material, screw blades are 8mm in thickness, Corrosion resistance, wear resistance
8. The shell of the machine adopts Ductile iron process, 18mm thickness.
9. Sieve net is good quliaty, 304 stainless steel, 0.3-2.0mm for many models.

Detailed Photos
FAQ Working spot

1, What is the dimension of separator cylinder diameter and length, screen mesh size?
a, Outside Separator cylinder Diameter 370mm, max part will be 400mm And length 1.meters
b, Screen cylinder Diameter:290mm
Length:450 mm
c, Screen mesh size: 0.55mm better size. (we can make screen mesh size according to your requiryment)
2, Length of pump leg?
1--3 meters
3, What is best pool dimension. should we execute as round or cubic?
Diameter:2.5meters
Depth:1.5-2meters
Round or cubic both ok.
4, What is concentration of Manure with water for inlet feed?
Concentration of manure: 30%-40% is the best condition. also 10%-20% is also ok to be processed.
5, What is solid content of outlet separated water ?
Solid content :55%-70

Packaging & Shipping
Product Parameters Parameters:

Model	DLD200	DLD280
Power	4kw-380V	5.5kw-380V
Size(mm)	2200*610*1000	2400*800*1300
Weight	510 kg	680 kg
Diameter of filter net	200 mm	280 mm
Dia. of feed inlet	76 mm
Dia. of liquid outlet	76 mm
Dia. of water outlet	108 mm
Materials	Ductile cast iron+304 stainless steel
Capacity	15-20 m3/h	20-25 m3/h

---
