Traction Type One Tow Two Chain Automatic Manure Scraper

Product Description

Product Description

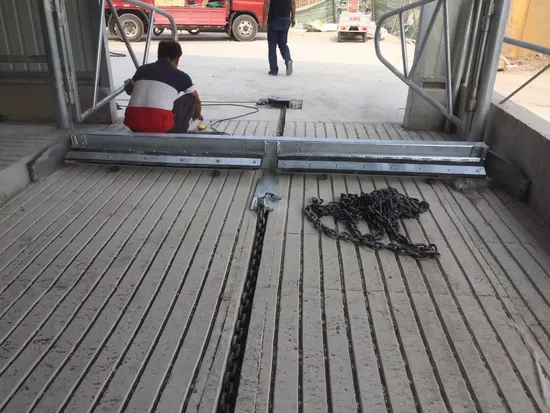

The whole machine components: motor reducer, drive unit assembly, corner system, transmission chain, manure scraper, control system, etc., the working principle is that the drive unit drags the scraper through the chain to carry out a reciprocating movement, the scraper moves forward when the manure is cleared, and the manure is not cleared when the scraper is retreated. It is suitable for manure road one-way distance > 120 m barn environment.
The main features of the system are practical, energy-saving, safe and intelligent. The manure cleaning system can ensure the cleanliness of the cowshed at all times, does not have any impact on the walking, feeding and rest of the cattle, is easy to install, safe and reliable work, noiseless operation, and low maintenance cost.
The company took the lead in developing the successful scraper automatic manure removal control system, which is currently the most advanced in China, the longest one-way manure cleaning loop, and the first scraper manure removal system that applies Hall positioning technology, and its long service life has been unanimously recognized by old users. National patented products, patent number: ZL 2014020 0322 102.0, ZL 2014 2 08597 38.9, etc. According to the length of the manure channel, the product can be divided into single-axis steering scraper manure cleaning system and three-axis steering scraper manure cleaning system.
Surface treatment: hot-dip galvanized
Motor: 2.2kw, 380V
Cleaning route length: 150m~240m
Cleaning speed: 4~6m/min
Chain: high-strength mining chain, the size of each section is 14*50mm, and the breaking load is 250kN
There is no need to be supervised when working, just press the button to turn it on, and it will automatically scrape the feces back and forth.
Product Parameters
Three-axis corner wheels that are stronger than single axles and are suitable for longer working distances
Detailed Photos
Specially designed drive wheels
Graphite-lubricated corner wheels are used

Three-axis corner wheel box
The scraper has a more scientific eccentric design
The steel plate is cut using a laser

Company Profile
Beijing Junguang Weiye Technology Co., Ltd. is the executive director unit of the Animal Husbandry Engineering Branch of the Chinese Society of Agricultural Engineering, and is a high-tech enterprise specialized in the design and construction of modern livestock farm, production and sales of breeding and manure treatment equipment. The company headquartered in Room 403, Building 9, No. 16 Chenguang East Road, Fangshan District, Beijing, the production base is located in Yixian Economic and Technological Development Zone, with an office area of 2700 square meters and a production workshop of 6500 square meters. We specializes in the production of dairy farm equipment: headlocks, barns,fans, cattle brushes, spray systems, manure scrapers, animal waste treatment systems, bedding material production systems and other livestock farm equipment.With the support of the government and customers, our breeding and manure treatment equipment sales network covers more than 10 provinces, municipalities and autonomous regions such as Shandong, Hebei, Henan, Shanxi, Heilongjiang, Inner Mongolia, Liaoning, Xinjiang, etc., and has won unanimous praise and trust from colleagues in the dairy farm industry with its low price and high quality.
The company focuses on the research and development and promotion of new products, with 24 national patented technologies, all products are in efficient, practical, durable, energy-saving and cost-saving research direction, the company will continue to improve product quality and service to meet the needs of the rapid development of dairy farm industry.

FAQ

NO.	Common faults	Possible factors for malfunction	Solution
1	The manure passage is not cleaned thoroughly, and there is residual manure on the passage.	Severe wear of wear-resistant rubber strips in contact with the ground	Move the rubber strip downward, or contact the manufacturer for replacement. Regularly check the wear of rubber strips
2	During the process of retracting the scraper, the lifting height was too low, causing retreat with manure.	The scraper operates for a long time, and the wear-resistant feet are severely worn, causing the height of the support too low during the scraper retraction.	Contact the manufacturer to replace the wear-resistant feet. Regular inspection and maintenance.
3	Code: E.ocA Overcurrent during accelerated operation	Check if there are foreign objects stuck in the corner wheel or chain, which causing overload and shutdown protection. The motor or reducer is damaged	Inspect all parts and remove foreign objects. Repair or replace the motor reducer.
4	Code: E.ocb Instantaneous overcurrent during startup
5	Code: E.ocn Overcurrent during constant speed operation
6	Code: AE DCL DC bus under voltage	There is fault in the distribution power supply or input/output cables.	Professional personnel inspect and repair the distribution power supply; Check and replace the input or output cables of the control box.
7	Code: AE PLI Power input phase loss
8	Code: AE PLO Motor output phase loss
9	Code: E HR1 Abnormal U-phase sensor	The frequency conversion module is damaged	Contact the manufacturer for repair or replacement
10	Code: E HR2 Abnormal V-phase sensor
11	Code: EFOP Inverter module protection
12	Code: EOHI heatsink overheat	The ambient temperature of the control box is too high; Dust or foreign objects blocking the heat dissipation holes, resulting in poor ventilation of the radiator.	Replace the installation position of the control box; Improve the ventilation of the radiator.
13	Code: AE CFE Communication abnormality	Loose communication cable plug between display screen and motherboard; Damaged display screen	Check the communication cable plug; Contact the manufacturer to replace the display screen.
Reminder: It is strictly prohibited to connect electricity from the scraper control box for other external devices, otherwise it will cause serious damage!

---
