Non-Woven Machine Carding Waste Fiber Polyester Fiber Carding Machine Production Line

US$29,500.00
1 Set
US$29,300.00
2+ Sets

Basic Info.

Model NO.
GM1550
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
Oline
Transport Package
Customized
Specification
Nope
Trademark
RD
Origin
China
HS Code
8445119001
Production Capacity
100 Pieces/Month

Product Description

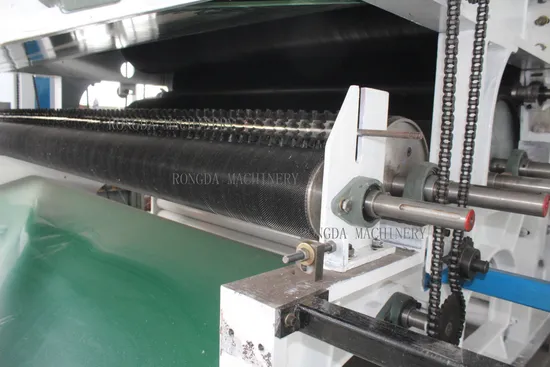

Single Cylinder Double Doffer Carding Machine
Application:
The machine is suitable to card the chemical fiber and blended fiber after opening to be evenly distributed fiber network and used for the next process
The machine adopts single-cylinder combing, double-doffer double-random (clutter)roller delivery, double-roller stripping cotton, with strong carding ability and high production. All cylinders of the machine are modulated and qualitatively processed and then precision machined. Radial runout is less than or equal to 0.03 mm. The feed roller is paired with the upper and the lower two groups, frequency control, independent transmission, and equipped with metal detection device, with the function of self-stop alarm reversing.
Technical data
Product Width 1500mm,2000mm,2300mm,2500mm,3000mm,3500mm
Cylinder diameter Φ1508mm
Doffer diameter Φ708mm
Transfer roller diameter Φ508mm
Licker-in diameter Φ408mm
Feeding roller diameter Φ408mm
Power 10.5Kw--40.5Kw
The Max speed 130m/min
Output weight 20-40g/m
Fiber size 1.5D-70D,25-200mm
