Pipe Production Line / Tube Making Machine /Extruder Machine

Product Description

Extrusion
Adopts optimized screw structure to ensure excellent plasticization under high speed operation High-Speed Water Cooling Trough
Servo-controlled multi-pass
cooling trough can easily obtain sufficient cooling effect.
The cooling effect of the 4M multi-pass cooling trough is

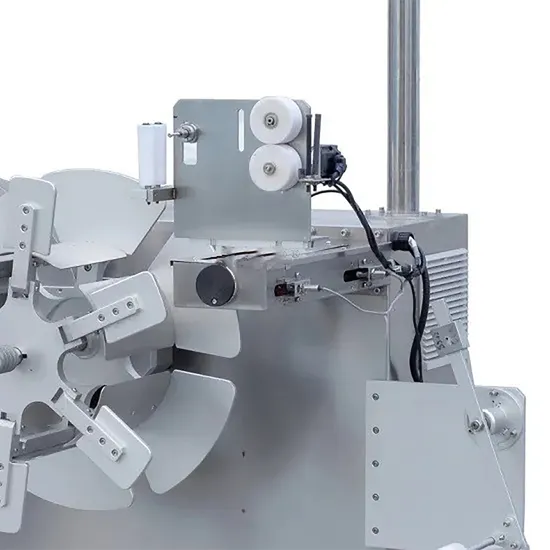

equivalent to that of 22M standard cooling trough Double Station Winder For Small Thread(Tube) Inspection Equipment
The high-speed extrusion line is equipped with online closed-loop OD gauge, which can monitor tolerance of products and achieve auto sorting. Production data can be constantly checked and long-term reservedfto track the product quality.
Standard & High Speed Contrast

Ф3.8 Specification
Item	Output(M/min)	Output(M/24H)	Diameter Tolerance
Ф50 extrusion line (Standard)	40~50M	≈72,000M	±0.08 AUTO assembly not recommended
Ф65 extrusion line (High-speed)	130~150M	≈216,000M	±0.03~0.05 AUTO assembly compatible

Description1. TWT extrusion line adopts optimized screw to ensure excellent plasticization under high speed operation.2. The extrusion efficiency is three times higher than the previous 50 conventional extrusion line.3. Servo controlled multi-pass cooling trough can easily obtain sufficient cooling effect.4. This high-speed extrusion line is equipped with online closed-loop OD gauge, which can monitor tolerance of products and achieve auto sorting.5. Production data can be constantly checked and long-term reserved to track product quality.
Nanjing Trans World Trading Co., Ltd is established in year 2007. Specialized in ONE-STEP MEDICAL SOLUTION such as Raw Materials, Components, Medical Products, Production Line, Mould, Clean Room, Packaging, Sterilization. TWT market spread Europe, Asia, Middle East, South America, and Africa and so on.TWT cooperate with China advanced manufacturing plants, and our profound basis of cooperation enable us be familiar with medical industry supply chain, then supply customers with professional service and best price. TWT has strict quality control which wins good reputation from our customers and it saves the after-sale service time for both sides. TWT engineers are professional in manufacturing and inspection, and our technical team reply questions in time, help customers keep factory running regularly.TWT has passed ISO13485: 2016 certificate, and stand at the forefront of the industry and win the trust and support of global customers.

---
