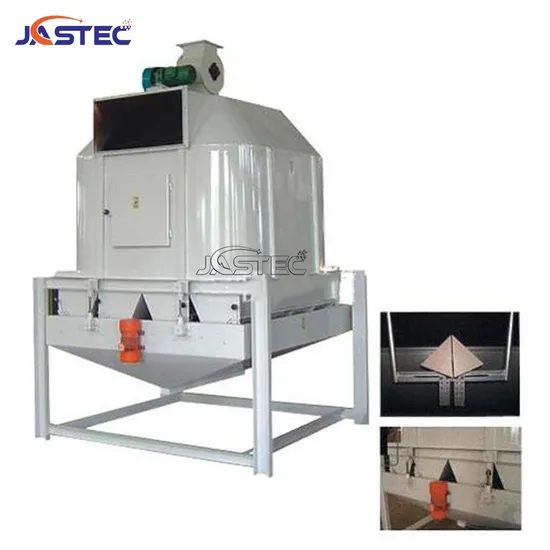

High-Efficiency Counterflow Pellet Cooler for Feed Productionindustrial Counterflow Pellet Cooler

US$1,400.00-3,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
Feed Pellet Cooler
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
1year
Spindle Speed
2960rpm
Mixing Time
3-6min
Number of Hammers
84
Main Power
0.75+0.75+0.2 Kw
Productivity
1000kg/Batch
Voltage
380V / 50Hz
Dimensions
2150*1325*3050 mm
Weight
3700 Kg
Noise Level
Lower Than 75 dB
Screening Area
1000X2100mm
Discharging Method
Manual Small Door Opening
Processing Capacity
1-3t/H
Screen Aperture
0.5mm-10mm Optional
Feeding Method
Manual or Automatic
Transport Package
Wooden Box
Specification
1600kg
Trademark
Jastec
Origin
China
HS Code
8436100000
Production Capacity
500pieces/Year

Product Description

Multi-pass Convection Belt Dryer
APPLICATION: Pelletizing Industry
Capacity:3-6T/H
Main Power:1.5KW The pellet cooler adopts the principle of counterflow cooling. The pellets sufficiently and evenly cooled. The machine adopts a unique sliding valve mechanism to discharge materials, and the operation is smooth and the discharge is smooth. Currently, this equipment is mainly used in the cooling systems of feed plants, wood pellet plants, biomass pellet plants, grass pellet plants, straw pellet plants, cat litter pellet plants, and organic fertilizer pellet plants.
Applications Of Counterflow Pellet Cooler JASTEC counter flow cooler is a new type of cooler popular in the world. It uses the principle of counter current cooling to cool high temperature and high humidity pellets, that is, the ambient cold air passes vertically through the layer, first with the cold phase. The hot air heated in contact with the hot material and the direction of the wind flow is opposite to the direction of the flow.
So that the pellets gradually cooled in the forward direction, and the other coolers can prevent from directly contact with cold air and high-temperature pellets, thereby quenching the pellets.
And then cracked surface of the particle. Since the cold air enters the cooling machine from the bottom in all directions, the air inlet area is large and the cold air utilization rate is high.
Technical Features Of Counterflow Pellet Cooler
The mixing time is 90s, the mixing is uniform, and the cv is not more than 5%. The distribution of various materials after mixing is uniform, and the material does not decompose. The filling can change into a wide range, and the filling coefficient can vary from 0.1 to 0.8. Which can use for mixing various proportions and granular materials in many fields. Select the full-length door structure, the discharge is rapid, and there is no residue. Working Principle Of Counterflow Pellet Cooler Which is discharged from the feed pellet machine and is uniformly stacked in a cooling box through a rotary conical bulker. And the cold air is slide-type from the lower side of the cooling box.
The bottom of the discharge mechanism and the upper part of the collecting hopper enter the cooler in all directions. Pass through the material layer to exchange heat with the moist heat particles, and then suck out through the suction system. So that the pellets can cool.

Model Specifications NKSL11×11 NKSL14×14 NKSL16×16 NKSL19×19 NKSL21×21 NKSL24×24
Power(kw) 1.15 1.15 1.15 1.5 1.5 1.5
Production(t/h) 3 5 7 10 15 20


Plant preparation
Production line projects Production line business plan Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
