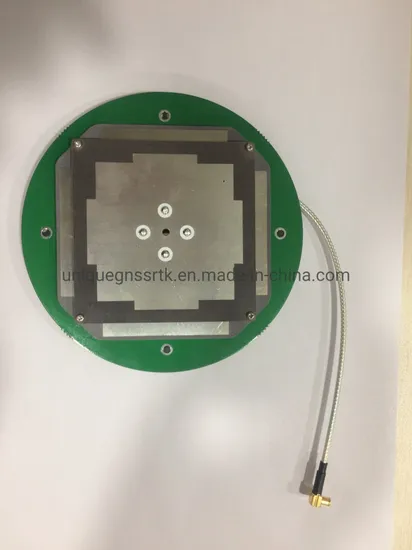

Frequency Range GPS Internal Antenna U-Ggb7121

Product Description

Product Description Features
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range.
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask.
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath.
4. Water proof, shock proof and lightning resistance.
Application
Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.

Specification

Antenna Specification
Frequency Range	GPS L1/L2, GLONASS L1/L2, Beidou B1/B2/B3, SBAS
Impedance	50 Ohm
Polarization	RHCP
Axial Ratio	≤ 3 dB
Azimuth Coverage	360°
Output VSWR	≤ 1.5
Gain at Zenith	5.5 dBi
Phase Center Error	≤ 2mm
LNA Specification
LNA Gain	40 dB
Noise Figure	≤ 2.0 dB
Output VSWR	≤ 1.5
Ripple	± 1dB
Drain Voltage	3-18 VDC
Current Consumption	≤ 45 mA
Group Delay	≤ 5 ns
Mechanical Specification
Dimension	Φ120 x 16.5 mm
Connector	MCX-JW
Weight	225g
Environmental Specification
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +85°C
Humidity	95% Non-Condensing
