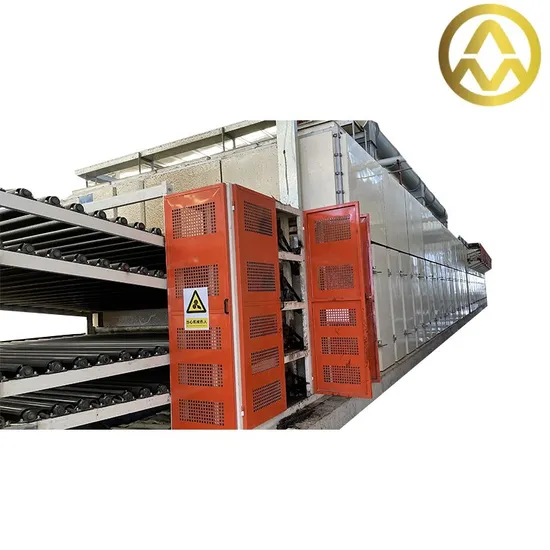

Core Veneer Drying Machine for Plywood Making

Product Description

Product Parameters

model	BG1333-13+2
Working width	2800 mm
Working decks	3 decks
Length of heating section	13*2000 mm=26000 mm
Length of cooling section	2*2000=4000 mm
Total power	181.7 kw
Transport motor	7.5 kw*3=22.5 kw
Heating motor	11 kw*13=143 kw
Cooling motor	4 kw*2+3 kw*2=14 kw
Out put stacker	2.2 kw*1=2.2 kw
Veneer transportation speed	1.5~15 m/min
Heating medium	Saturated steam
Saturated steam pressure	0.6~1.0 Mpa
Drying temperature	150~170 ºC
Steam consumption	4300 kg/h
Oil boiler capacity
Veneer density	~590 kg/m³
Available veneer thickness	1.5~3.2 mm
Veneer initial moisture content	70~80 %
Veneer final moisture content	10~12 %
Load ratio	85 %
Drying capacity	~4.3 m³/h
Roller spacing	333 mm
Overall dimension(L*W*H)	4697*5150*4150 mm
Front veneer conveyor	6525 mm
Back veneer conveyor	7365 mm
Hydraulic lift BSJ48-3T	3 pieces (for two in lets and one exit)
Lift table specifications	Stroke: 450~1650mm Table size: 2600*1200mm Hydro-cylinder: φ100 mm*350ST*2 Motor power: 3kw Capacity: 3000kg Dimensions:2600(L)*1200(W)*450(H)mm Weight: 1100 kg/piece
Total weight	98800 KGS
Containers	3*40HQ

Detailed Photos
Certifications
Company Profile

Frequently Asked Questions
1. What products does your company offer?
Our company specializes in manufacturing and supplying equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
• Brazil (where we have local distributors)
• Argentina
• Paraguay
• Fiji
• Pakistan
• Bulgaria
• Ghana
We have experience working with these countries and can arrange shipping and handling in compliance with local regulations.

---
