PP/PE Water-Ring-Cutting Pelletizing Production Line

US$40,000.00-70,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
pellet-SHQ
Material Processed
Granues
Plastic Type
PVC
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Item
PP/PE Water-Ring-Cutting Pellets Production Line
Voltage
3 Phase 380V 50Hz or as Requested
Delivery Time
30-50 Working Days
Color
Grey or as Requested
Capacity
120-500 Kg/H
Feeding Material
PVC Powder
Final Product
PVC Granules
Cutting Type
Water-Ring-Cutting Cut-in-Water
Pellets Size
3mm-8mm Diameter
Transport Package
Wooden Case
Specification
International Standard
Trademark
chenxing
Origin
Zhangjiagang of Jiangsu
HS Code
84779000
Production Capacity
300sets/Year

Product Description

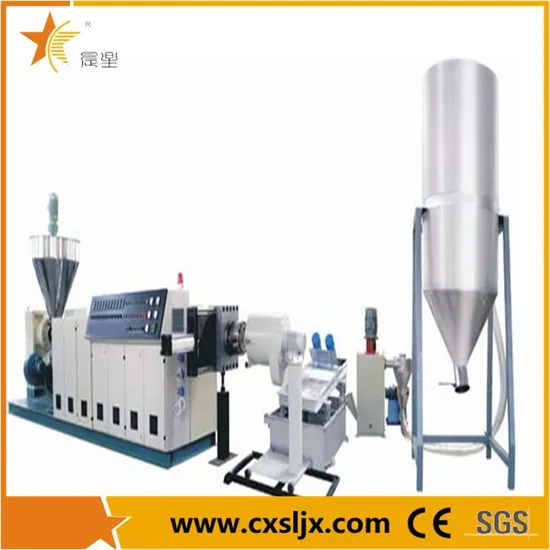

PP/PE water-ring-cutting pelletizing line
/ PP PE Pelletizing Line /SJ120+SJ120 two stage water cooling pelletizing line
1. optional extruder: SJ75, SJ90, SJ120,SJ150
2. water-ring-cutting mould : 11-18pcs
3. Capacity: 80-300-500kg/h
PE Film Pelletizing Line mainly composed the machines as below:

1- Screw Conveyor

2- Main Single-screw Extruder (Second single screw extruder)

3- Hydraulic-change net & station

4- water-ring-cutting mould, 11pcs-18pcs

5- Water Tank

6- dewatering machine
7. Dryer System and silo
MACHINE LIST
1 SCREW LOADER
2 SJ75 /SJ75+SJ75 SJ90/ SJ90+SJ90 SJ120 / SJ120+SJ120 SJ150 / SJ150+SJ150
3 hydraulic net exchanger(optional)
4 water-ring-cutting mould
5 water tank
6 dewatering machine
7 air blower and silo
capacity 120kg/h 150-200 kg/h 250-320 kg/h 450-500/500-600 kg/h
