Spm - Spe - 11ty One Color Screen Printing Press

Product Description

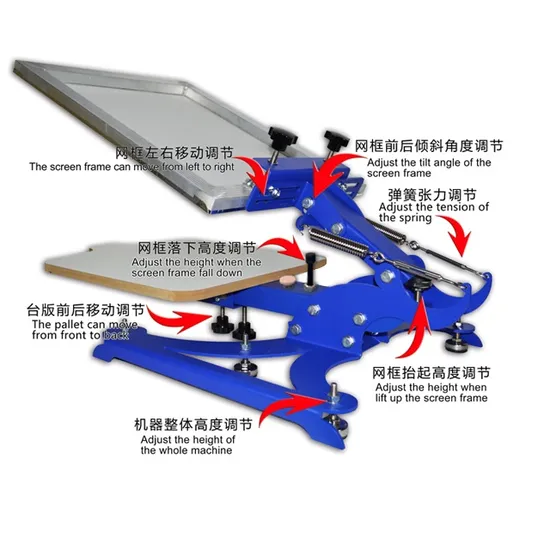

Single Color Screen Printing Press Model:SPM - SPE - 11TY The machine is directly placed on the desktop for use; Mainly used for monochrome screen printing products printing. This machine is especially suitable for making multiple patterns on a screen plate, by moving the screen frame or table plate, printing patterns in different parts of the T-shirt. Features and functions of the machine:
1. Screen frame chuck can be adjusted up and down 3.5cm according to the substrate thickness.
2. Table version can be adjusted 10 cm before and after the need.
3. After the mesh frame is fixed in the center, the chuck and the mesh frame can be moved about 20cm. 4. By adjusting the Angle of the chuck, the products with positive or negative Angle of the inclined plane can be printed.
5. By adjusting the flower basket screw to suit different weights of net frame lift balance.
6. The mesh frame is made of aluminum alloy pressing plate, which can make the mesh frame more stable.
7. 6 supporting pads on the base can adjust the machine smoothly, or adjust the height of 3-4cm according to the need.
8. After lifting the screen frame, the Angle and the screen plate can be completed by adjusting the screws.
9. The machine is split structure, users can install and use according to the manual and the complete set of tools configured. Specification

item	value
Model Number	SPM - SPE - 11TY
Place of Origin	China
Brand Name	Hanze
Printing Area	45 X 55 CM / 18 X 22 INCH
Machine Size	90 X 49 X 36 CM
Net weight	16.00 KGS
Gross Weight	18.00 KGS
Carton size	69.0 X 56.0 X 29.0 CM
Product color	Blue
Material	Steel
Machine surface treatment	Electrostatic spraying
Appurtenant material	Stainless steel or galvanized, nickel plated
Packing volume	0.12CBM

---
