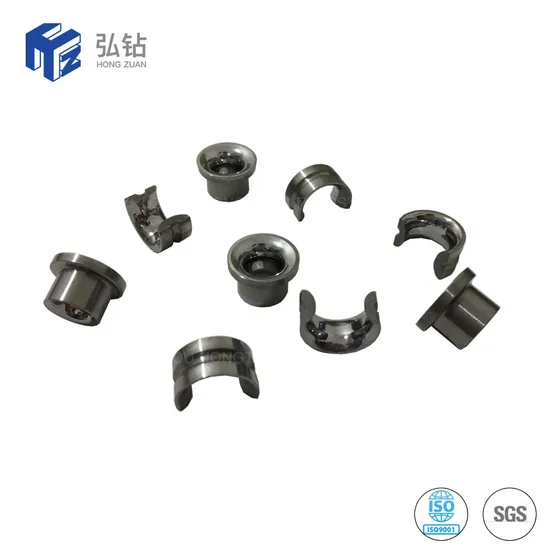

Wear Resistant Half Circle Pellet of Tungsten Carbide

Product Description

Feature of carbide guide wire eyelet:
Carbide wire guide is made of tungsten carbide for its extremely hard and wear-resistant features, with sophisticated equipment for precision grinding and polishing, coupled with advanced production and processing technology, the inner and the outer diameter of the hole and tolerance R at less than 0.01mm, the surface roughness over the trough reached Ra 0.025 and above, it requires high hardness, smooth surface in use to reduce injury and other enameled wire.
Advantage of carbide guide wire eyelet
1. Material:100% virgin raw material with submicron grain size
2. Grade: Various grades for choice
3. Advanced production equipments and testing equipments
4. Precious Ground and polished
5. High wear resistance,high hardness and impact toughness
6. Advanced technology, automatic pressing, HIP sintering and precision grinding
7. Samples & small orders are acceptable.
For any other sizes we are able to custom-made according to clients' requirements or drawings.
Recommend grades and specifications:

Grade No.	Density (g/cm3)	HRA	T.R.S (Mpa)	Application
YG3X	14.9	≥91.5	≥1300	For drawing non-ferrous metal wire and stainless-steel wire etc.
YG6	14.8	≥90.0	≥2150	For drawing steel wire and stainless-steel wire etc.
YG6X	14.8	≥92.0	≥1860	For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness.
YG8	14.8	≥89.5	≥2320	For drawing steel wire, stainless steel wire. Good general performance.
YG11	14.4	≥88.5	≥2420	For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.

Application:
Tungsten carbide wire guiding rollers are widely used in steel Industry for guiding steel/iron wire with its high impact strength and wear resistance,various dimensions are available in our factory,your specific enquiry will be more than welcome.
Company Profile
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc . We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.
We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles, HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth, Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.
Product packaging
FAQQ1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality? All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on

---
