Direct Sale! ! ! Warehouse Good Quality Wheel Diesel Electric Hydraulic Telescopic Gasoline Mini Forklift Truck and Part Swith Low Price for Sale

Product Description

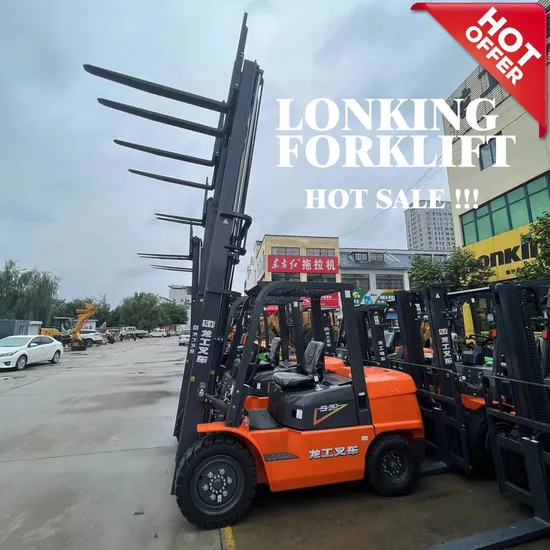

LONKING FORKLIFT FD30(T)
Power form			diesel fuel
Rated load		kg	3000
J Load center distance		mm	500
H1 Maximum lifting height		mm	3000
H3 Free lift height		mm	165
L5×W×T Fork size		mm	1070×125×45
Mast inclination		deg	6 in front and 12 in back
L3 Front overhang		mm	479
L4 rear overhang		mm	522
Dimensions	L1 Overall length	mm	3770
	W1 Overall width	mm	1225
	h2 mast cannot rise	mm	2075
	h4 Safety frame height	mm	2130
Height of shelf (fork frame)		mm	1280
R1 Minimum turning radius		mm	2460
Ra minimum right angle stacking channel width		mm	4155
Maximum travel speed (full load/empty load)		Km/h	18.5/20
Maximum lifting speed (no load/full load)		mm/s	505/485
Maximum climbing grade (full load/no load)		%	20
Deadweight		kg	4220
TIRE	Front wheel		28×9-15-14PR
	rear wheel		6.5-10-10PR
Wheelbase	S front wheel	mm	1000
	P Rear wheel	mm	980
L2 wheelbase		mm	1700
Minimum ground clearance	m2 door frame	mm	130
	m1 frame	mm	160
Fuel tank capacity		ltr	60
Engine parameters
Model			XINCHAI4D27G31-007
Rated power		kW/r	36.8/2500
Rated torque		N·m/r	156/1700~1900
Number of cylinders			4
Displacement		L	2.67

About Us
Our Advantages
1.Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course

---
