Precision Mitre Saw Window Frame Saw Double Head Aluminum and UPVC Cutting Saw Window and Door Making Machine

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.
Product Description

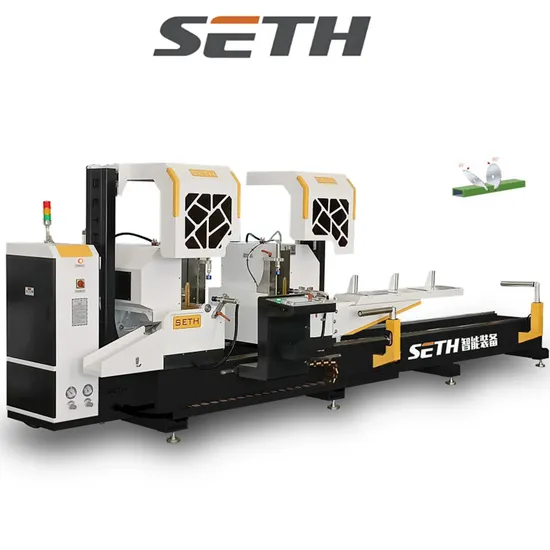

CNC double head precision cutting saw for aluminum PVC uPVC profile
☆ Mainly used for cutting industrial aluminum profiles, aluminum doors and Windows,
curtain wall materials, also can be used for PVC and wood Cutting and blanking of profiles.
☆ The machine adopts numerical control technology and can complete automatic positioning
cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500,
high wire speed, high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy,
accurate positioning, stable work.
☆ High precision spindle ensures stable rotation of saw blade and effectively
improves surface quality of workpiece.
☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently.
Automatic opening and closing protective cover,
Make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically
opens and closes the protective cover, so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable,
and saw cutting height and saw cutting width are very large.
Detailed Photos

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	410~4300mm
Cutting width	Max. 210mm
Cutting height	Max. 320mm
Max. cutting slope	45°210×280mm 90°210×320mm
Cutting angle	90°, 45°
Feeding speed	0~3m/min
Saw blade specification	Ф600×4.4×Ф30 Z=144
Overall dimension	5800×1900×1700mm
Weight	2000kg

Packaging & Shipping
Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
Our Advantages
Why choosing SETH?
Using newest technology
professional Technical & Engineering experts
10+ Years Experience
Realiable & Safe machine
Reasonable price

FAQ

Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL
window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router
and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.

---
