Welcome to visit

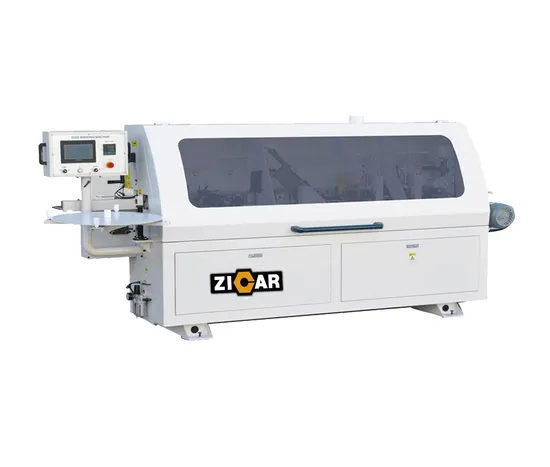

ZICAR woodworking/wooden/wood edge banding machine importer MF50G

US$8,000.00
1-4 Pieces
US$6,500.00
5+ Pieces

Basic Info.

Model NO.
MF50G
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Certification
CE, ISO
Panel Thinkness
10-50mm
Min.length panel
140mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Underneath
Customized
Customized
Panel length
Min.140mm
Panel width
Min.50mm
Working Pressure
0.6MPa
Total Power
11Kw
Weight
860kg
Panel Thickness
10-50mm
Packing Size
3850X900X1640mm
Quantity
2 sets
Feeding speed
13 or 18 m/min
Over Size
3000*750*1360mm
Transport Package
Stretch Film
Specification
3800x800x1410mm
Trademark
ZICAR
Origin
China
HS Code
8465990000
Production Capacity
50/Month

Product Description

MF50GM
Products Description
Details Images
Product Paramenters
Model MF50GM
Panel length Min.140mm
Panel width Min.50mm
Panel thickness 10-50mm
Edge thickness 0.4-3mm
Feeding speed 13 or 18 m/min
Working pressure 0.7Mpa
Net weight 1150kg
Total power 11kw
Overall size 3800x800x1410mm
Packing Size 3850x900x1640mm
