US$8,000.00-14,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type

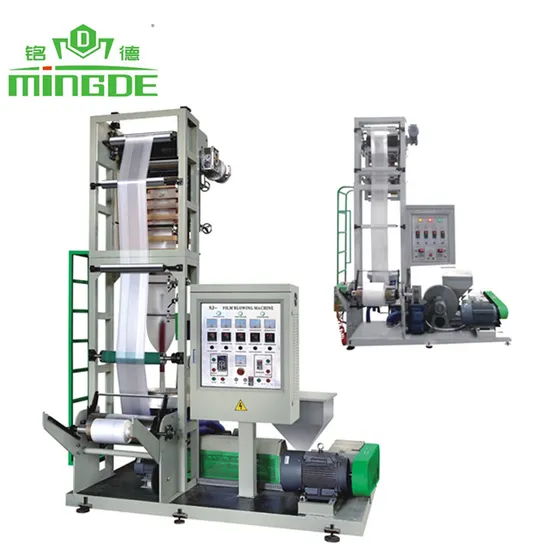

Mini Film Blowing Machine
Maximum Folding Width of Film
800mm
Computerized
Computerized
Certification
CE, ISO9001:2008
Suitable Material
HDPE LDPE LLDPE
Film Thickess (mm)
"HD: 0.008-0.08 Ld: 0.02-0.10"
Max. Extrusion Output HD
"50kg/Hr 60kg/Hr"
Transport Package
Wooden Case
Production Capacity
100sets/Year
Product Description
Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.
We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.
| Model | MD-HM35 | MD-HM45 | MD-HM50 | MD-HM55 |
| Suitable material | HDPE LDPE LLDPE |
| Max. Film width (mm) | 400 | 500 | 600 | 800 |
| Film thickess (mm) | HD: 0.008-0.08 LD: 0.02-0.10 |
| Max. extrusion output HD | 20KG/HR 25KG/HR | 35KG/HR 40KG/HR | 40KG/HR 50KG/HR | 50KG/HR 60KG/HR |
| Gear box | 133 | 146 | 146 | 173 |
| Screw Diameter | 35mm | 45mm | 50mm | 55mm |
| Screw L/D ratio | 30:1 | 28:1 | 28:1 | 28:1 |
| Driving motor | 7.5KW | 11KW | 15KW | 18.5KW |
| Die size | HD: 50mm | HD: 60mm | HD: 60mm | HD: 60/80mm |
| AIr blower | 1.1kw | 1.5kw | 2.2kw | 2.2kw |
| Air ring | 470 | 620 | 620 | 620 |
| Center Steady stick | 1pc |
| Take-up roller width | 450mm | 550mm | 650mm | 850mm |
| embossing roller width | 350mm | 450mm | 550mm | 750mm |
| take-up speed | 10-80M/min | 10-80M/min | 5-60M/min | 5-60M/min |
| take-up motor | 0.75kw | 0.75kw | 0.75kw | 1.1kw |
| Winding roller width | 450mm | 550mm | 650mm | 850mm |
| winding motor | 10N.m | 1.1KW | 1.1KW | 1.1KW |
| Winding speed | 10-80M/min | 10-80M/min | 5-60M/min | 5-60M/min |
| Cover dimension | 1.4x2.0x3.2m | 1.45x2.28x3.2m | 4.0x1.1x4.0m | 4.2x1.55x4m |
>>
