Wi-Fi6 5g CPE with External Antenna, 5g Router with SIM Card Slot, Plug and Play

US$129.90 100 Pieces (MOQ)

Basic Info.

Model NO.
G710
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Not Modular
Application
Enterprise, SOHO
Network
5g SA and 5g Nsa
Performance
Non Line Speed Router
Architecture
Single Bus Master-slave CPU
SIM Card Slot
Support
WiFi
11ax WiFi6
Data Rate(WiFi)
1800Mbps, Dual Band
5g Data Rate SA
Max 2.4gbps(Dl)/Max 900Mbps(UL)
5g Data Rate Nsa
Max 2.8gbps(Dl)/Max. 550Mbps(UL)
LTE-FDD
Max 1.6gbps(Dl)/Max 200Mbps(UL)
Transport Package
Gift Box
Specification
wifi6 1800Mbps data rate
Trademark
OEM ODM
Origin
China
HS Code
8517623100
Production Capacity
50000PCS/Month

Product Description

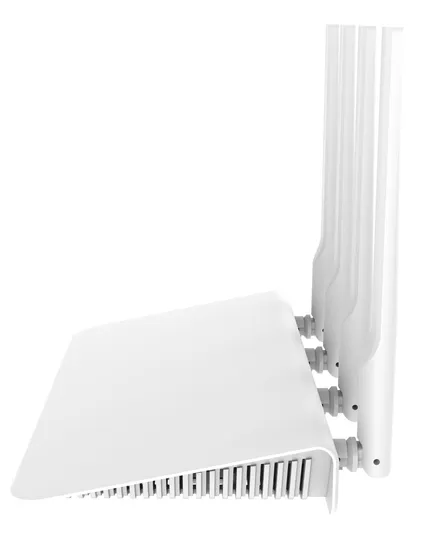

G710 is Wi-Fi6 standard 4G/5G CPE, combined 1800Mbps Wi-Fi6 speed over 2.4GHz(600Mbps) and 5GHz(1200Mbps), with SIM card slot for 4G/5G, equipped Gigabit WAN/LAN port, 5dBi omni high gain antenna, it make more users to access the high speed wireless network, to enjoy the seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Support the watchdog, automatically recovery abnormal, keep the device stable and high speed performance.
Specification:
Model No.: WR7621-LTE-G710-AX1800
CPU MT7621DAT+MT7905DN+MT7975
Flash SPI NOR 16MB
Memory 128MB
2.4G Frequency 2.4GHz - 2.484GHz
2.4G WIFI Protocol 802.11 b / g / n /ax
5G Frequency 5.150GHz~5.850GHz
5G WIFI Protocol 802.11 a / n / ac / ax
Antenna 2 .4G Omni antenna: 5dBi
Antenna 5.8G Omni antenna: 5dBi
Speed 2.4G: 600Mbps, 5.8G: 1200Mbps
Maxi User Access 100+
2.4G RF Power ≤ 20dBm
5.8G RF Power ≤ 19dBm
WAN 1 * 10/100/1000M WAN Port
LAN 2 * 10/100/1000M LAN Port
4G/5G M.2 Connector for 4G/5G module(Optional)
Reset Reset button, press 6~10 seconds, device will be restored factory settings.
LED Indicator WAN, LAN, Sys
Power Consumption <9W
DC 12V /1A
Size 197.7mm*144.2mm*32.4mm
Working Environment Working Temperature: -20°C to 40°C; Storage Temperature: -40°C to 70°C, Humidity: 5%~95%(Non-Condensing)

5G Speed and Band
Band
Sub-6 NSA band n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
Sub-6 SA band n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
Bandwidth 120MHz
LTE DL Cat 19/UL Cat 18
LTE Band B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/46(LAA)/48/66/71
4G UMTS B1/2/4/5/8/19
Data Rate
5G SA Sub-6 Max 2.4Gbps(DL)/Max 900Mbps(UL)
5G NSA Sub-6 Max 2.8Gbps(DL)/Max. 550Mbps(UL)
LTE-FDD Max 1.6Gbps(DL)/Max 200Mbps(UL)
UMTS/WCDMA Max 42Mbps(DL)/Max 5.76Mbps(UL)
