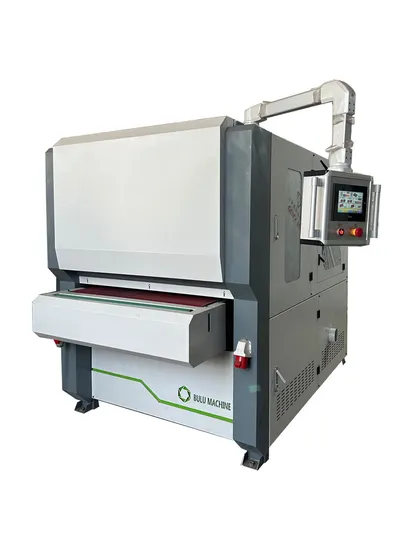

New Design Metal Surface Brushing/Deburring/Chamfering Polishing Machine

Product Description

Product Description

The deburring and cutting production line can evenly remove burrs from the surface, contour edges and hole edges of parts at one time and evenly chamfer them

Device working principle diagram:
Equipment performance and characteristics
1) Remove burrs inside and outside the contour, and round off the corners. Since it is a flexible processing, all sheet metal parts that have been polished, brushed and coated will not damage the surface and coating.
2) It is suitable for removing burrs in the holes of flat or relatively flat sheet metal parts processed by CNC punching and shearing machines; removing burrs generated after laser cutting; removing slag generated by flame cutting or plasma cutting, etc.
3) Replace the burr file, scraper or use electric or pneumatic tools for grinding process treatment, so that the workpiece can be polished more evenly; safer, and effectively reduce labor costs and improve production efficiency.
4) The grinding and stroke parameters can be visually adjusted freely, and only the workpiece contour and sharp edges can be polished without damaging the surface, effectively protecting the workpiece coating, which is suitable for galvanized sheets, coated aluminum sheets, copper sheets, stainless steel sheets and other workpieces whose surfaces require protection.
5) The turbine vacuum adsorption technology is used, and the workpiece is firmly adsorbed during grinding. The workpiece after bending and special-shaped workpieces can also be adsorbed and polished, which greatly improves the processing range and efficiency, and prevents the vacuum adsorption system from losing pressure or failing due to blockage. There is also a special magnetic suction system. When the workpiece can be fixed by magnetic adsorption, it can greatly reduce the power consumption of the equipment, save energy and protect the environment, and save production costs to the maximum extent.
Equipment configuration and related technical parameters

project	parameter	project	parameter
Main beam of the frame	Steel plate, channel steel, square tube (bending, welding)	Work surface	Integrated adjustable
Processing range	W: 1000mm; H: 80mm; L: unlimited	Fixed mode	Negative pressure system
Used consumables	Yarn wheel	Abrasive wheel specifications	300-300-40mm
Conveying method	Belt	Conveying speed	Frequency conversion 0.5-14M/min
Conveying motor	Hyperboloid 1.5KW	Alternating power	1.5KW
Main machine power	2.2*2KW	Abrasive belt motor	11KW4-level
Spindle speed	0-1000r/min (variable frequency)	Grinding wheel set	4 groups
Lifting motor	0.75kw	Alternating speed	0.35r/min (variable frequency adjustable)
Negative pressure adsorption	7.5kw2900rpm	Lifting stroke	80mm
Control system	Delta PIC	Grinding wheel set	4 groups
Bearing	TR	Electric appliances	Chint

Roller brush rotary grinding
Used to remove corner burrs, round corners, and smooth edges. Universal roller brush single or multiple combined structures, revolution + rotation, so that the abrasive fully contacts the workpiece

Motor

control Panel

Before workpiece processing

After workpiece processing
1.Q: Are you factory or trading company?
A: We are a factory.
2.Q: Where is your factory located? How can I visit there?
A:Our factory is located in Xingtai City. Hebei province. You can fly to zhengding airport and or by high-speed train directly to Xingtai Dong Station. I will pick you up.
3.Q: why choose Bulu polishing machine?
A: We are one of leader in this field(in China). Our quality products and service have enabled us to expand our market from china
to more than 60 countries.We can provide the machine with good quality and best price, also good and professional sale and
after-sale service, if the machine has any problems in the future, please talke with us at any time, we will offer you the
technical support and spare parts, etc.
4.Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
5.Q: This is my first time to import, how can I get the machine?
A: After you confirm the machine to order and pay, we can help you to deliver the polishing machine to your nearest seaport or
airport, or door to door to you by express, etc., We are very experienced, please rest assured.
6.Q: This is my first time to use this machine, is it easy to operate?
A: This flat polishing machine is very easy to operate. After delivery of the flat polishing machine, we will
also provide you with an English user manual and simple videos for your reference.
7.Q: How is the quality of the machine?
A: Before deliver the machine, we will test the machine, after ensure the machine's good running and performance, then we will
deliver it, please don't worry.
8. Q: What's the payment method?
A: We accept most of the payment method, such as, T/T, Western Union, Paypal, L/C, etc.
9.Q: How long can your products be delivered?
A:If there is no accident, 7-15 days. We value every customer and try our best to deliver it in the shortest time.

---
