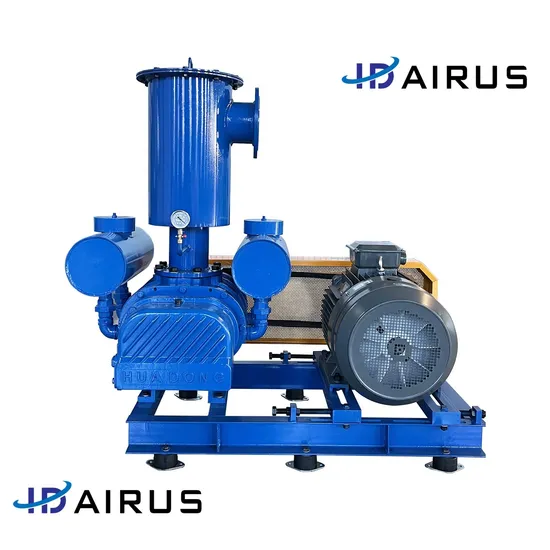

Sewage Treatment Aeration Roots Blower Affordable Vacuum Pump

Product Description

Product DescriptionOur HDSR series vacuum pump is developed based on the introduction of RR series fan technology from Japan using our company's countercurrent cooling patent technology. The vacuum pump is used for absorbing high vacuum. Countercurrent cooling is a kind of cooling method that uses low-temperature gas as pre-intake gas and usually sets the pressure of cooling gas to be equal to the exhaust pressure.
Product Parameters

MODEL	INLET FLOW RATE(M3/MIN)	VACUUM PRESSURE(KPA)	MOTOR(KW)
HDSR50V	0.86-2.59	-13.3 To -46.6	0.75-4
HDSR65V	1.16-3.80	-13.3 To -46.6	1.1-5.5
HDSR80V	2.50-5.53	-13.3 To -79.9	2.2-11
HDSR100V	3.57-8.47	-13.3 To -79.9	3-18.5
HDSR125V	4.35-13.37	-13.3 To -79.9	5.5-30
HDSR150V	7.29-29.25	-13.3 To -79.9	5.5-55
HDSR175V	17.26-40.00	-13.3 To -43.9	15-55
HDSR200V	25.03-58.69	-13.3 To -79.9	18.5-13.2
HDSR250V	57.73-93.20	-13.3 To -79.9	30-185
HDSR300V	83.21-136.3	-13.3 To -79.9	45-250

Our Advantages(1) High vacuum pressure roots type blower, much higher than common roots vacuum pumps.
(2) Air cooling, don't need water cooling system even at high vacuum pressure.
(3) Advanced structure design, low vibration and noise level.
(4) Positive displacement structure, flow rate changes little even pressure changes.
(5) Long service life term, more than 10 years under the guidance.
(6) Adopt a number of patent technologies such as countercurrent device, advanced and reasonable structural design.
(7) The impeller adopts a specially designed composite line with high efficiency.
(8) The processing precision of key parts is high to ensure the smooth operation of the vacuum pump
(9) High vacuum, wide flow coverage
ApplicationRoots vacuum pump in petroleum, chemical industry, plastics, pesticides, steam turbine rotor dynamic balance, aerospace space simulation and other devices have been tested for a long time, so it should be vigorously promoted and applied all around the world. It is also widely used in petroleum, chemical, metallurgy, textile and other industries. Vacuum pump accessories as a vacuum pump silencer, used for vacuum pump noise control.
Vacuum packing, metallurgy, deaeration, rolling in vacuum metallurgy, and vacuum distillation, vacuum concentration, vacuum drying in chemicals/food/pharmaceutical/wastewater treatment industry, pneumatic conveying system, paper folding system, etc.
Production Process
CertificationsOur company has more than 100 national patents, including 31 invention patents, the company's products have passed ISO9001 international quality management system certification, ISO24001 environmental management system certification, ISO45001 Occupational health and safety management system certification, knowledge product management system, two integration management system, EU CE certification ATEX explosion-proof certification and identified by the Ministry of Industry and Information Technology.
While chasing the ultimate products, we also strive for excellence in sales service and after-sales system construction, sales and service outlets throughout the country, and exports to more than 100 countries and regions, to achieve the whole process from R & D design to finished products, independent control, for the stability of products, durability provides a sufficient basis and reliable guarantee.
Company Profile
SHANDONG HUADONG BLOWER CO.,LTD is located at Taiping Industrial Park, Xiuhui Town, Zhangqiu City, Shandong Province, China. It covers 100,000 square meters and is close to Zhangqiu station of Jiaoji railway in the South and 600 meters away from Jiqing highway in the North. We are an integrated automated machinery enterprise with professional precision machinery manufacturing and an excellent aftersales service system.
Founded in the late 1990s, the company has developed so far, relying on scientific management, cooperating with famous experts in the blower industry and prestigious universities, equipped with the latest manufacturing technology and strict inspection, insisting the entrepreneurship culture of " quality is the basic of one enterprise", our company have won great reputation from our customers and society. Up to now, we have won many honours, like: "high-tech enterprise", "invisible champion cultivation enterprise of Shandong Province", " Zhangqiu Quality Praise", "Professional precision special advanced enterprise of Shandong Province", " advanced party branch", " advanced communist party operators", " civilized and integrity private enterprise", "top 10 taxpayers", "keeping the contract and credit enterprise", " famous brand of Shandong Province", "customer satisfaction enterprise", and so on. The company has get ISO9001 international quality management system and CE certification.
Our main products include: 3 lobe roots blower (HDSR series, HDLH series, HG series), 2 lobe roots blower (HDR series, HTR series), steam compressor, vacuum pump and so on. Our products can be widely used in several industries, such as sewage treatment, pneumatic conveying, cement, electric power, paper making, aquaculture, food, metallurgy, mining, environment protection industry etc.

---
