| US$3,300.00-7,500.00 | 1 Piece (MOQ) |

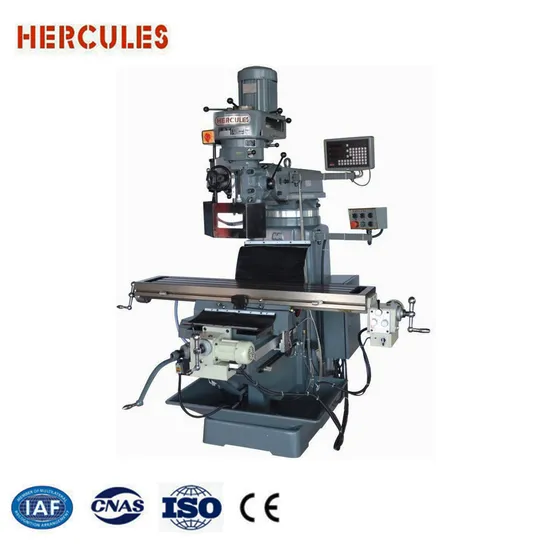

| Model | M5(M5E) |
| Economic Series | |
| Table size(L*W)(mm) | 1370x305 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 1000 900 with power feed |
| Y axis(mm) | 440 |
| Z axis (mm) | 480 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63 |
| Distance between spindle and table(mm) | 20-500 |
| Ram travel (mm) | 500 |
| Travel of spindle quill (mm) | 120 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 |
| Spindle speed(rpm) | 70-3600rpm 10steps |
| Spindle hole taper | NT40 |
| Main Motor | 5HP |
| Tilt angle for milling head | left and right±90º |
| Guiding tracks(X.Y.Z) | X axis dovetail, Y/Z square |
| Dimension(L*W*H)(mm) | 1850x1650x2300 |
| Milling head | Square head with side brake |
| Weight (kg) | 1450 |
| Optional milling head : Round step milling head; Square head with side brake milling head; Variable stepless milling head | |
| Hercules Machinery Equipment Ltd. | |
