Soft Magnetic Alloy 1j85 1j79 1j80 3j53 Nickel Base Alloy Plate

Product Description

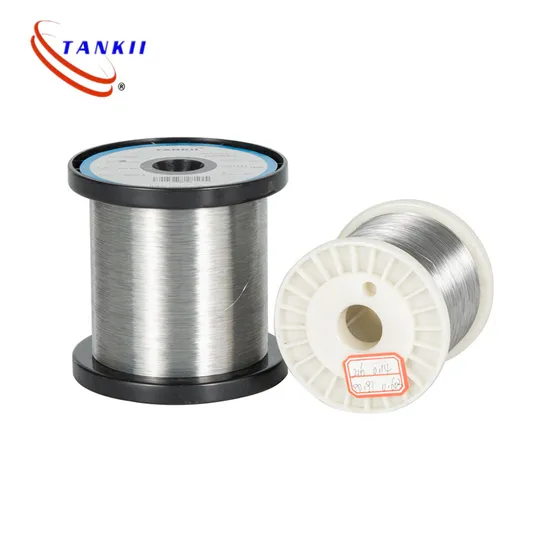

Soft Magnetic Alloy 1j85 1j79 1j80 3j53 Nickel Base Alloy Wire/Plate
Wireless charging technology is not through a wire but rather a power transfer of technology through the medium of air, the main principle is the use of magnetic resonance in the air transmission charges between the charger and the device, through the coil and a capacitor is formed between the charger and the device resonance, to achieve energy efficient transmission.
The following are details of our products 1J80:
Chemical composition

composition	C	P	S	Mn	Si
	≤
Content(%)	0.03	0.020	0.020	0.60~1.10	1.10~1.50

composition	Ni	Cr	Mo	Cu	Fe
Content(%)	79.0~81.5	2.60~3.00	-	≤0.20	Bal

Heat treatment system

shop sign	Annealing medium	heating temperature	Keep the temperature time/h	Cooling rate
1j80	Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa	Along with the furnace heating up 1100~1150ºC	3~6	In ≤200 ºC / h speed cooling to 400~500 ºC, fast to 200 ºC draw a charge

---
