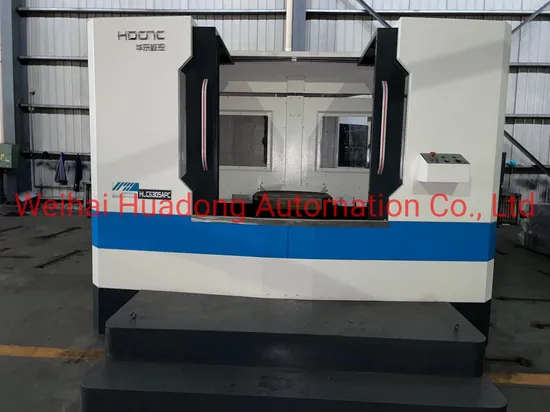

Hlc630sapc Economical Type Horizontal Machining Center with Dual Pallet

Product Description

1.machine structure this series machine adopt "T"shaped bed structure,using high rigidity roller linear guideway,the guideway span is large,the overall rigidity of the machine is good,strong bearing capacity,equiped with rotary table,it is suitable for the box,machine base column and other polyhedral parts processing,can acheive one time clamping to complete milling surface,boring,drilling,tapping and other processes of rough and fine processing,to ensure the accuracy of parts requirements,Double worktable can greatly save the clamping time of the workpiece and improve the working efficiency of the machine.
2.Machine model

MODEL	Unit	HMC500APC	HMC630APC	HMC630SAPC	HMC800APC
Table size	mm	500*500	630*630	630*700	800*800
table No.		2	2	2	2
table change time	s	15	16	20	18
Max.load	kg	500	1200	950	2000
table diving	°	1*360/0.001continuous
No.-W*distane	mm	5*14*100	5*18*125	5*18*125	5*22*160
rapid speed(x/y/z)	m/min	48/48/48	36/36/36	20/20/20	36/36/36
XYZcuttingspeed	m/min	20	20	10	20
spindle center line to table surface	mm	100-950	150-1150	0-750	150-1420
spindle nose to table center	mm	100-850	100-1000	130-1030	100-1050
spindle speed	rpm	6000
Max.torque	N.m	140/191	249/307	249/307	520/619
spindle power	kw	11/15	15/18.5	15/18.5	18.5/22
Tool holder type		BT50
Pull nail		MAS403 P50T-1
ATC capacity		40/60
Tool change time(tool to tool)	s	3.5/4.5
Max tool weight	kg	25		18	25
Max. diameter tool	mm	Φ125/Φ250
Max. tool length	mm	400		300	400
machine weight	kg	16000	22000	16000	26000
machine overall size(L*W*H)	cm	670*420*335	760*420*365	650*410*345	840*500*385

3.Standard accessories

24 Tool ATC	spindle air curtain dust control system	workpiece cooling system
equal division CNC rotary table	Automation lubrication system	Spiral chip removal device
chain-plate type chip lifter	full cover	tool,anchor bolt and pad iron

4.Optional accessories

32 arm chain type ATC	40 arm chain type ATC	ZF gearbox drive
central outlet of spindle	spindle oil cooling device	arbitray indexing CNC rotary table
scraper lift chip remover	3 axis linear scale	tool detection device
workpiece detection device	door opening protection	portable chip air gun,water gun

5.Company honors International exhibition

---
